Preface

Every JPA application that requires some kind of dynamic queries for e.g. filtering has to decide between duplicating parts of queries or building queries conditionally. JPA offers the Criteria API for constructing such dynamic queries, but using this API often results in unreadable and hard to maintain code. Concatenating query string parts is often an alternative that might even work for simple cases, but quickly falls apart in many real world scenarios. Implementing pagination with JPA and especially when fetching collections is hard to do efficiently and often sub-optimal ways are chosen for keeping maintainability.

Blaze Persistence is a library that lives on top of a JPA provider and tries to solve these and many more problems a developer faces when having complex requirements. It is composed of multiple modules that all depend on the core module which this documentation deals with.

The core module tries to ease the pain of writing dynamic queries by offering a fluent builder API that puts readability first. In addition to that, it also integrates deeply with the JPA provider to provide advanced SQL features that not even the JPA providers offer. The deep integration makes it possible to even workaround some known JPA provider bugs.

The entity view module builds on top of the core module and provides a way to define DTOs with mappings to the entity model. The mapping information is used in the query builder to generate projections that perfectly fit the DTO structure along with possible required joins.

The jpa-criteria module is an implementation of the JPA Criteria API based on the query builder of the core module. It offers extensions to the JPA Criteria API that enable the use of some of the concepts and advanced features that are also offered by the core module. The main intent of this module is to ease the migration of existing queries or to allow the use of advanced features in existing queries on a case by case basis.

Relation to JPA and implementations

You can view the Blaze Persistence core module as being a builder for query objects similar to the JPA Criteria API. The builder generally tries to check correctness as early as possible, but defers some checks to query generation time which allows to write query building code that looks almost like JPQL.

Behind the scenes Blaze Persistence core generates a JPQL query or a provider native query string. When advanced features like e.g. CTEs are used, the query string represents the logical query structure and looks very much like a possible future revision of JPQL.

The developers of Blaze Persistence see entity views as a better alternative to JPA 2.1 entity graphs which is why there is no special support for entity graphs. Nevertheless, using entity graph with queries produced by Blaze Persistence shouldn’t be a problem as long as no advanced features are used and can be applied as usual via query hints. Also note that entity graphs require a JPA 2.1 implementation whereas entity views also work with a provider that only implements JPA 2.0.

System requirements

Blaze Persistence core requires at least Java 1.7 and at least a JPA 2.0 implementation.

1. Getting started

This is a step-by-step introduction about how to get started with the core module of Blaze Persistence.

1.1. Setup

Every release comes with a distribution bundle named like blaze-persistence-dist-VERSION. This distribution contains the required artifacts for the Blaze Persistence core module as well as artifacts for integrations and other modules.

  • required - The core module artifacts and dependencies

  • entity-view - The entity view module artifacts and dependencies

  • jpa-criteria - The jpa-criteria module artifacts and dependencies

  • integration/hibernate - The integrations for various Hibernate versions

  • integration/datanucleus - The integration for DataNucleus

  • integration/eclipselink - The integration for EclipseLink

  • integration/openjpa - The integration for OpenJPA

  • integration/entity-view - Integrations for the entity view module

The required artifacts are always necessary. Every other module builds up on that. Based on the JPA provider that is used, one of the integrations should be used. Other modules are optional and normally don’t have dependencies on each other.

1.1.1. Maven setup

We recommend you introduce a version property for Blaze Persistence which can be used for all artifacts.

<properties>
    <blaze-persistence.version>1.3.2</blaze-persistence.version>
</properties>

The required dependencies for the core module are

<dependency>
    <groupId>com.blazebit</groupId>
    <artifactId>blaze-persistence-core-api</artifactId>
    <version>${blaze-persistence.version}</version>
    <scope>compile</scope>
</dependency>
<dependency>
    <groupId>com.blazebit</groupId>
    <artifactId>blaze-persistence-core-impl</artifactId>
    <version>${blaze-persistence.version}</version>
    <scope>runtime</scope>
</dependency>

Depending on the JPA provider that should be used, one of the following integrations is required

Hibernate 5.4
<dependency>
    <groupId>com.blazebit</groupId>
    <artifactId>blaze-persistence-integration-hibernate-5.4</artifactId>
    <version>${blaze-persistence.version}</version>
    <scope>runtime</scope>
</dependency>
Hibernate 5.3
<dependency>
    <groupId>com.blazebit</groupId>
    <artifactId>blaze-persistence-integration-hibernate-5.3</artifactId>
    <version>${blaze-persistence.version}</version>
    <scope>runtime</scope>
</dependency>
Hibernate 5.2
<dependency>
    <groupId>com.blazebit</groupId>
    <artifactId>blaze-persistence-integration-hibernate-5.2</artifactId>
    <version>${blaze-persistence.version}</version>
    <scope>runtime</scope>
</dependency>
Hibernate 5+
<dependency>
    <groupId>com.blazebit</groupId>
    <artifactId>blaze-persistence-integration-hibernate-5</artifactId>
    <version>${blaze-persistence.version}</version>
    <scope>runtime</scope>
</dependency>
Hibernate 4.3
<dependency>
    <groupId>com.blazebit</groupId>
    <artifactId>blaze-persistence-integration-hibernate-4.3</artifactId>
    <version>${blaze-persistence.version}</version>
    <scope>runtime</scope>
</dependency>
Hibernate 4.2
<dependency>
    <groupId>com.blazebit</groupId>
    <artifactId>blaze-persistence-integration-hibernate-4.2</artifactId>
    <version>${blaze-persistence.version}</version>
    <scope>runtime</scope>
</dependency>
Datanucleus 5.1
<dependency>
    <groupId>com.blazebit</groupId>
    <artifactId>blaze-persistence-integration-datanucleus-5.1</artifactId>
    <version>${blaze-persistence.version}</version>
    <scope>runtime</scope>
</dependency>
Datanucleus 4 and 5
<dependency>
    <groupId>com.blazebit</groupId>
    <artifactId>blaze-persistence-integration-datanucleus</artifactId>
    <version>${blaze-persistence.version}</version>
    <scope>runtime</scope>
</dependency>
<dependency>
    <groupId>com.blazebit</groupId>
    <artifactId>blaze-persistence-integration-eclipselink</artifactId>
    <version>${blaze-persistence.version}</version>
    <scope>runtime</scope>
</dependency>
OpenJPA
<dependency>
    <groupId>com.blazebit</groupId>
    <artifactId>blaze-persistence-integration-openjpa</artifactId>
    <version>${blaze-persistence.version}</version>
    <scope>runtime</scope>
</dependency>

1.2. Environments

Blaze Persistence is usable in Java EE, Spring as well as in Java SE environments.

1.2.1. Java SE

An instance of CriteriaBuilderFactory can be obtained as follows:

CriteriaBuilderConfiguration config = Criteria.getDefault();
// optionally, perform dynamic configuration
CriteriaBuilderFactory cbf = config.createCriteriaBuilderFactory(entityManagerFactory);

The Criteria.getDefault() method uses the java.util.ServiceLoader to locate the first implementation of CriteriaBuilderConfigurationProvider on the classpath which it uses to obtain an instance of CriteriaBuilderConfiguration. The CriteriaBuilderConfiguration instance also allows dynamic configuration of the factory.

The CriteriaBuilderFactory should only be built once.
Creating the criteria builder factory eagerly at startup is required so that the integration can work properly. Initializing it differently might result in data races because at creation time e.g. custom functions are registered.

1.2.2. Java EE

The most convenient way to use Blaze Persistence within a Java EE environment is by using a startup EJB and a CDI producer.

@Singleton // From javax.ejb
@Startup   // From javax.ejb
public class CriteriaBuilderFactoryProducer {

    // inject your entity manager factory
    @PersistenceUnit
    private EntityManagerFactory entityManagerFactory;

    private CriteriaBuilderFactory criteriaBuilderFactory;

    @PostConstruct
    public void init() {
        CriteriaBuilderConfiguration config = Criteria.getDefault();
        // do some configuration
        this.criteriaBuilderFactory = config.createCriteriaBuilderFactory(entityManagerFactory);
    }

    @Produces
    @ApplicationScoped
    public CriteriaBuilderFactory createCriteriaBuilderFactory() {
        return criteriaBuilderFactory;
    }
}

1.2.3. CDI

If EJBs aren’t available, the CriteriaBuilderFactory can also be configured in a CDI 1.1 specific way by creating a simple producer method like the following example shows.

@ApplicationScoped
public class CriteriaBuilderFactoryProducer {

    // inject your entity manager factory
    @PersistenceUnit
    private EntityManagerFactory entityManagerFactory;

    private volatile CriteriaBuilderFactory criteriaBuilderFactory;

    public void init(@Observes @Initialized(ApplicationScoped.class) Object init) {
        CriteriaBuilderConfiguration config = Criteria.getDefault();
        // do some configuration
        this.criteriaBuilderFactory = config.createCriteriaBuilderFactory(entityManagerFactory);
    }

    @Produces
    @ApplicationScoped
    public CriteriaBuilderFactory createCriteriaBuilderFactory() {
        return criteriaBuilderFactory;
    }
}

1.2.4. Spring

Within a Spring application the CriteriaBuilderFactory can be provided for injection like this.

@Configuration
public class BlazePersistenceConfiguration {

    @PersistenceUnit
    private EntityManagerFactory entityManagerFactory;

    @Bean
    @Scope(ConfigurableBeanFactory.SCOPE_SINGLETON)
    @Lazy(false)
    public CriteriaBuilderFactory createCriteriaBuilderFactory() {
        CriteriaBuilderConfiguration config = Criteria.getDefault();
        // do some configuration
        return config.createCriteriaBuilderFactory(entityManagerFactory);
    }
}

1.3. Supported Java runtimes

All projects are built for Java 7 except for the ones where dependencies already use Java 8 like e.g. Hibernate 5.2, Spring Data 2.0 etc. So you are going to need at least JDK 8 for building the project.

We also support building the project with JDK 9 and try to keep up with newer versions. If you want to run your application on a Java 9 JVM you need to handle the fact that JDK 9+ doesn’t export some APIs like the JAXB, JAF, javax.annotations and JTA anymore. In fact, JDK 11 will even remove the modules so the command line flags to add modules to the classpath won’t work.

Since libraries like Hibernate and others require these APIs you need to make them available. The easiest way to get these APIs back on the classpath is to package them along with your application. This will also work when running on Java 8. We suggest you add the following dependencies.

<dependency>
    <groupId>javax.xml.bind</groupId>
    <artifactId>jaxb-api</artifactId>
    <version>2.2.11</version>
</dependency>
<dependency>
    <groupId>com.sun.xml.bind</groupId>
    <artifactId>jaxb-core</artifactId>
    <version>2.2.11</version>
</dependency>
<dependency>
    <groupId>com.sun.xml.bind</groupId>
    <artifactId>jaxb-impl</artifactId>
    <version>2.2.11</version>
</dependency>
<dependency>
    <groupId>javax.transaction</groupId>
    <artifactId>javax.transaction-api</artifactId>
    <version>1.2</version>
    <!-- In a managed environment like Java EE, use 'provided'. Otherwise use 'compile' -->
    <scope>provided</scope>
</dependency>
<dependency>
    <groupId>javax.activation</groupId>
    <artifactId>activation</artifactId>
    <version>1.1.1</version>
    <!-- In a managed environment like Java EE, use 'provided'. Otherwise use 'compile' -->
    <scope>provided</scope>
</dependency>
<dependency>
    <groupId>javax.annotation</groupId>
    <artifactId>javax.annotation-api</artifactId>
    <version>1.3.2</version>
    <!-- In a managed environment like Java EE, use 'provided'. Otherwise use 'compile' -->
    <scope>provided</scope>
</dependency>

Automatic module names for modules.

Module Automatic module name

Core API

com.blazebit.persistence.core

Core Impl

com.blazebit.persistence.core.impl

Core Parser

com.blazebit.persistence.core.parser

JPA Criteria API

com.blazebit.persistence.criteria

Core Impl

com.blazebit.persistence.criteria.impl

JPA Criteria JPA2 Compatibility

com.blazebit.persistence.criteria.jpa2compatibility

1.4. Supported environments/libraries

The bare minimum is JPA 2.0. If you want to use the JPA Criteria API module, you will also have to add the JPA 2 compatibility module. Generally, we support the usage in Java EE 6+ or Spring 4+ applications.

The following table outlines the supported library versions for the integrations.

Module Automatic module name Minimum version Supported versions

Hibernate integration

com.blazebit.persistence.integration.hibernate

Hibernate 4.2

4.2, 4.3, 5.0, 5.1, 5.2, 5.3, 5.4 (not all features are available in older versions)

EclipseLink integration

com.blazebit.persistence.integration.eclipselink

EclipseLink 2.6

2.6 (Probably 2.4 and 2.5 work as well, but only tested against 2.6)

DataNucleus integration

com.blazebit.persistence.integration.datanucleus

DataNucleus 4.1

4.1, 5.0

OpenJPA integration

com.blazebit.persistence.integration.openjpa

N/A

(Currently not usable. OpenJPA doesn’t seem to be actively developed anymore and no users asked for support yet)

1.5. First criteria query

This section is supposed to give you a first feeling of how to use the criteria builder. For more detailed information, please see the subsequent chapters.

In the following we suppose cbf and em to refer to an instance of CriteriaBuilderFactory and JPA’s EntityManager, respectively. Take a look at the environments chapter for how to obtain a CriteriaBuilderFactory.

Let’s start with the simplest query possible:

CriteriaBuilder<Cat> cb = cbf.create(em, Cat.class);

This query simply selects all Cat objects and is equivalent to following JPQL query:

SELECT c FROM Cat c

Once the create() method is called the expression returns a CriteriaBuilder<T> where T is specified via the second parameter of the create() method and denotes the result type of the query. The default behavior of create() is that the result type is assumed to be the entity class from which to select. So if we would like to only select the cats' age we would have to write:

CriteriaBuilder<Integer> cb = cbf.create(em, Integer.class)
    .from(Cat.class)
    .select("cat.age");

Here we can see that the criteria builder assigns a default alias (the simple lower-case name of the entity class) to the entity class from which we select (root entity) if we do not specify one. If we want to save some writing, both the create() and the from() method allow the specification of a custom alias for the root entity:

CriteriaBuilder<Integer> cb = cbf.create(em, Integer.class)
    .from(Cat.class, "c")
    .select("c.age");

Next we want to build a more complicated query. Let’s select all cats with an age between 5 and 10 years and with at least two kittens. Additionally, we would like to order the results by name ascending and by id in case of equal names.

CriteriaBuilder<Cat> cb = cbf.create(em, Cat.class, "c")
    .where("c.age").betweenExpression("5").andExpression("10")
    .where("SIZE(c.kittens)").geExpression("2")
    .orderByAsc("c.name")
    .orderByAsc("c.id");

We have built a couple of queries so far but how can we retrieve the results? There are two possible ways:

  • List<Cat> cats = cb.getResultList(); to retrieve all results

  • PagedList<Cat> cats = cb.page(0, 10).getResultList(); to retrieve 10 results starting from the first result (you must specify at least one unique column to determine the order of results)

    The PagedList<Cat> features the getTotalSize() method which is perfectly suited for displaying the results in a paginated table. Moreover the getKeysetPage() method can be used to switch to keyset pagination for further paging.

1.6. Summary

If you want to go into more detail, you are now ready to discover the other chapters of the documentation or the API yourself.

2. Architecture

This is just a high level view for those that are interested about how Blaze Persistence works.

2.1. Interfaces

A quick overview that presents the interfaces that are essential for users and how they are related.

2.1.1. Basic functionality

Blaze Persistence has a builder API for building JPQL queries in a comfortable fashion.

The most important interfaces that a user should be concerned with are

The functionalities of the query builders are separated into base interfaces to avoid duplication where possible. All functionality for the WHERE-clause for example can be found in com.blazebit.persistence.BaseWhereBuilder. Analogous to that, there also exist interfaces for other clauses.

Unless some advanced features(e.g. CTEs) are used, the query string returned by every query builder is JPQL compliant and thus can also be directly compiled via EntityManager#createQuery(String). In case of advanced features the query string that is returned might contain syntax elements which are not supported by JPQL. Some features like CTEs simply can not be modeled with JPQL, therefore a syntax similar to SQL was used to visualize the query model. The query objects returned for such queries are custom implementations, so beware that you can’t simply cast them to provider specific subtypes.

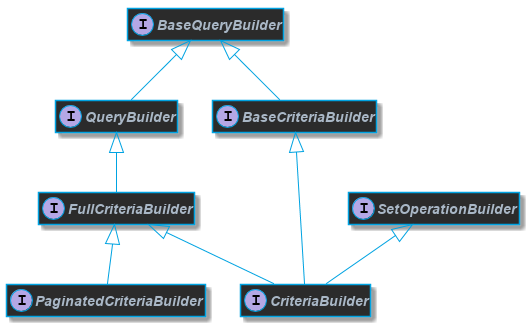

Core builder types class diagram

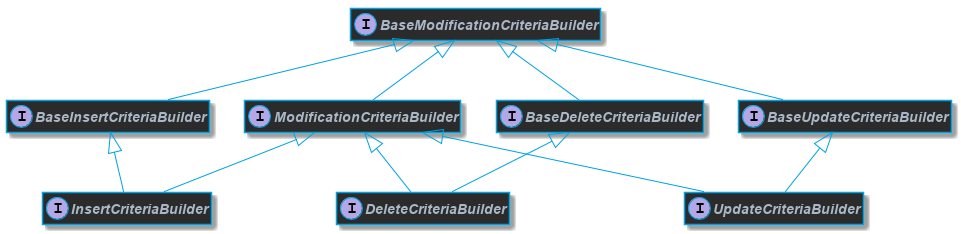

2.1.2. DML support

If a user uses Blaze Persistence for data manipulation too, then the following interfaces are unavoidable to know

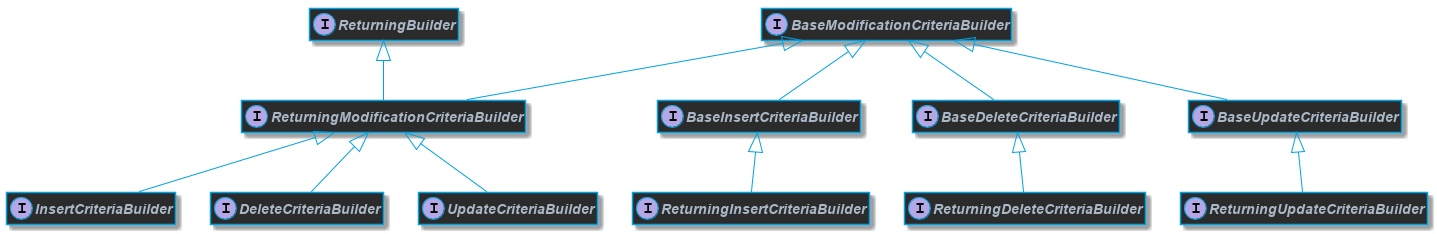

DML builder types class diagram

Every interface has a dual partner interface prefixed with Returning that is relevant for data manipulation queries that return results.

The Returning interfaces are only relevant when using CTEs (Common Table Expressions)

2.1.3. CTE support

CTE builders are split into two families of interface groups. One group is concerned with CTEs that do select queries, the other with DML queries.

Select CTE queries can either be recursive or non-recursive. Recursive CTEs always have a base part and a recursive part which is explicitly modeled in the API. One starts with a com.blazebit.persistence.SelectRecursiveCTECriteriaBuilder for defining the base part and then unions the recursive part of the query in a com.blazebit.persistence.SelectCTECriteriaBuilder. The non-recursive builder is very similar but does not have an explicit notion of a base or recursive part. Although it supports set operations, we do not recommend building recursive queries with the non-recursive builder especially because it’s not portable and less readable.

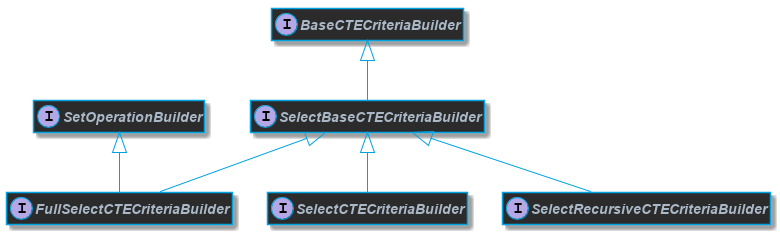

CTE builder types class diagram

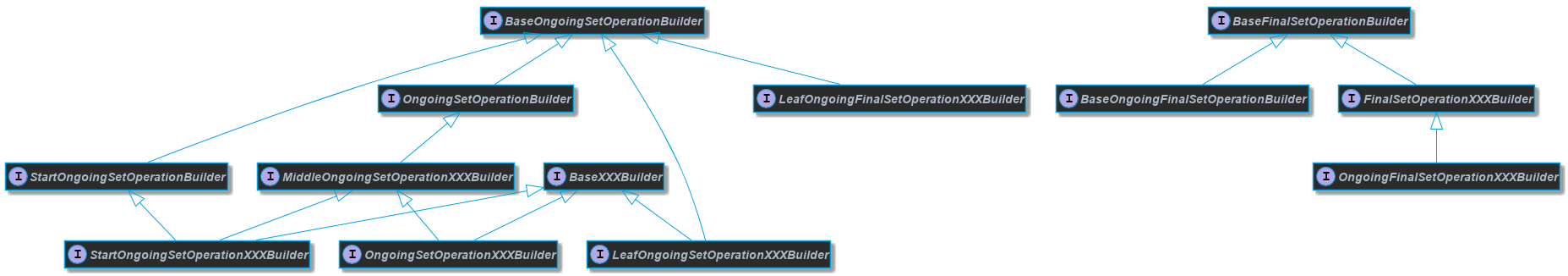

2.1.4. Set operations support

Every query builder has support for set operations as defined by the interface com.blazebit.persistence.SetOperationBuilder. One can start a nested group of query builders concatenated with set operations. This group has to be ended and concatenated with another query build or another nested group. When an empty set operation group is encountered during the query building, it is removed internally.

criteriaBuilder
    .startSet(Cat.class) (1)
        .startUnionAll() (2)
        .endSetWith() (3)
        .endSet() (4)
        .unionAll() (5)
    .endSet() (6)
    .unionAll() (7)
    .endSet() (8)
1 Starting a builder with a nested set operation group returns StartOngoingSetOperationXXXBuilder
2 Starting any nested set operation group returns StartOngoingSetOperationXXXBuilder
3 Ending nested set operation group with endSetWith() to specify ordering and limiting returns OngoingFinalSetOperationXXXBuilder
4 Ending a nested set operation group with endSet() results in MiddleOngoingSetOperationXXXBuilder
5 Connecting a nested set operation group with a set operation results in OngoingSetOperationXXXBuilder
6 Ending a top level set operation nested group results in LeafOngoingFinalSetOperationXXXBuilder
7 Connecting a top level set operation group with a set operation results in LeafOngoingSetOperationXXXBuilder
8 Ending the top level set operation results in FinalSetOperationXXXBuilder
Top-level query builder set operations

Invoking a set operation on a top level query builder results in a LeafOngoingSetOperationXXXBuilder type. LeafOngoingSetOperationXXXBuilder types are the possible exit types for a top level set operation group.

Further connecting the builder via a set operation will produce a builder of the same type LeafOngoingSetOperationXXXBuilder.

criteriaBuilder.from(Cat.class)
    .unionAll() (1)
1 The set operation on a top level query builder produces LeafOngoingSetOperationXXXBuilder

When ending such a builder via endSet(), a FinalSetOperationXXXBuilder is produced.

criteriaBuilder.from(Cat.class)
    .unionAll()
    .endSet() (1)
1 The ending of a top level set operation builder produces FinalSetOperationXXXBuilder

FinalSetOperationXXXBuilder types are the result of a top level set operation and once constructed only support specifying ordering or limiting.

Nested query builder set operations

Invoking a nested set operation on a query builder results in a StartOngoingSetOperationXXXBuilder type. StartOngoingSetOperationXXXBuilder types represent a builder for a group of set operations within parenthesis. With such a builder the normal query builder methods are available and additionally, it can end the group.

criteriaBuilder.from(Cat.class)
    .startUnionAll() (1)
1 The nested set operation on a query builder produces StartOngoingSetOperationXXXBuilder

When connecting the builder with another set operation a OngoingSetOperationXXXBuilder is produced which essentially has the same functionality.

criteriaBuilder.from(Cat.class)
    .startUnionAll()
    .unionAll() (1)
1 A set operation on a StartOngoingSetOperationXXXBuilder produces OngoingSetOperationXXXBuilder

When ending such a top level nested builder via endSet(), a LeafOngoingFinalSetOperationXXXBuilder is produced.

criteriaBuilder.from(Cat.class)
    .startUnionAll()
    .endSet() (1)
1 Results in LeafOngoingFinalSetOperationXXXBuilder

Or when in a nested context, a MiddleOngoingSetOperationXXXBuilder is produced.

criteriaBuilder.from(Cat.class)
    .startUnionAll()
    .startUnionAll()
    .endSet() (1)
1 Results in MiddleOngoingSetOperationXXXBuilder

The ending of the builder is equivalent to doing a closing parenthesis.

Since a nested group only makes sense when connecting the group with something else, the LeafOngoingFinalSetOperationXXXBuilder and MiddleOngoingSetOperationXXXBuilder only allow connecting a new builder with a set operation or ending the whole query builder.

criteriaBuilder.from(Cat.class)
    .startUnionAll()
    .endSet()
    .unionAll() (1)
1 Results in LeafOngoingSetOperationXXXBuilder

Or when in a nested context, a OngoingSetOperationXXXBuilder is produced.

criteriaBuilder.from(Cat.class)
    .startUnionAll()
    .startUnionAll()
    .endSet()
    .unionAll() (1)
1 Results in OngoingSetOperationXXXBuilder

Ending a nested group with endSetWith() allows to specify ordering and limiting for the group and returns a OngoingFinalSetOperationXXXBuilder.

criteriaBuilder.from(Cat.class)
    .startUnionAll()
    .endSetWith() (1)
1 Results in OngoingFinalSetOperationXXXBuilder

2.2. Query building

Every query builder has several clause specific managers that it delegates to. These managers contain the state for a clause and might interact with other clauses. Depending on which query builder features are used, the query object that is produced by a query builder through getTypeQuery() or getQuery() is either the JPA provider’s native query or a custom query.

If no advanced features are used, nothing special happens. The query string is built and passed to EntityManager.createQuery() which is then returned. When advanced features are used, an example query is built which most of the time is very similar to the original query except for advanced features. This example query serves as a basis for execution of advanced SQL. It almost contains all the necessary parts, there is just some SQL that needs to be replaced.

If CTEs are involved, one query per CTE is built via the same mechanism and added to the participating queries list. This list is ordered and contains all query parts that are involved in an advanced query. The ordering is important because in the end, parameters are positionally set in SQL and the order within the list represents the order of the query parts in the SQL. All these query objects are then passed to a QuerySpecification which is capable of producing the SQL for the whole query from it’s query parts. It serves as component that can be composed into a bigger query but also provides a method for creating a SelectQueryPlan or ModificationQueryPlan. Such query plans represent the executable form of query specifications that are fixed. The reason for the separation between the two is that list parameters or calls to setFirstResult() and setMaxResults() could change the SQL.

The query specification is wrapped in an implementation of the JPA query interfaces javax.persistence.Query or javax.persistence.TypedQuery and a query plan is only created on demand just before executing. Parameters, lock modes and flush modes are propagated to all necessary participating queries.

Set operations on top level queries essentially are special query specifications that contain multiple other query specifications.

To really execute such advanced queries, query plans use the ExtendedQuerySupport. It offers methods to run an JPA query with an SQL replacement and a list of participating queries. The ExtendedQuerySupport is JPA provider specific and is responsible for proper query caching and giving access to SQL specifics of JPA query objects.

The integration of ObjectBuilder is done by introducing a query wrapper that takes results, passes them through the object builder and then returns the results.

2.3. JPA Provider Integration

The essential integration points with the JPA provider are encapsulated in EntityManagerFactoryIntegrator and ExtendedQuerySupport.

The EntityManagerFactoryIntegrator offers support for DBMS detection, function registration and the construction of a JpaProvider through a JpaProviderFactory. The JpaProvider is a contract that can be used to query JPA provider specifics. Some of those specifics are whether a feature like entity joins is supported but also metamodel specifics like whether an attribute has a join table.

The ExtendedQuerySupport is necessary for advanced SQL related functionality and might not be available for a JPA provider. It provides access to SQL related information like the column names of an entity attribute or simply the SQL query for a JPA query.

3. From clause

The FROM clause contains the entities which should be queried. Normally a query will have one root entity which is why Blaze Persistence offers a convenient factory for creating queries that select the root entity.

CriteriaBuilder<Cat> cb = cbf.create(em, Cat.class);

The type Cat has multiple purposes in this case.

  1. It defines the result type of the query

  2. Creates an implicit query root with that type and the alias cat

  3. Implicitly selects cat

This implicit logic will help to avoid some boilerplate code in most of the cases. The JPQL generated for such a simple query is just like you would expect

SELECT cat
FROM Cat cat

As soon as a query root is added via from(), the implicitly created query root is removed.

CriteriaBuilder<Cat> cb = cbf.create(em, Cat.class)
    .from(Person.class, "person")
    .select("person.kittens");

In such a query, the type Cat only serves the purpose of defining the query result type.

SELECT kittens_1
FROM Person person
LEFT JOIN person.kittens kittens_1

Contrary to the described behavior, using the overload of the create method that allows to specify the alias for the query root will result in an explicit query root.

CriteriaBuilder<Cat> cb = cbf.create(em, Cat.class, "myCat");

This is essentially a shorthand for

CriteriaBuilder<Cat> cb = cbf.create(em, Cat.class)
    .from(Cat.class, "myCat");

A query can also have multiple root entities which are connected with the , operator that essentially has the semantics of a CROSS JOIN. Beware that when having multiple root entities, path expression must use absolute paths.

CriteriaBuilder<Cat> cb = cbf.create(em, Cat.class, "myCat")
    .select("name");

The expression name in this case is interpreted as relative to the query root, so it is equivalent to myCat.name. When having multiple query roots, the use of a relative path will lead to an exception saying that relative resolving is not allowed with multiple query roots!

3.1. Joins

JPQL offers support for CROSS, INNER, LEFT and RIGHT JOIN which are all well supported by Blaze Persistence. In contrast to JPQL, Blaze Persistence also has a notion of implicit/default and explicit joins which makes it very convenient to write queries as can be seen a few sections later.

RIGHT JOIN support is optional in JPA so we recommend not using it at all.
In addition to joins on mapped relations, Blaze Persistence also offers support for unrelated or entity joins offered by all major JPA providers.

3.1.1. Implicit joins

An implicit or default join is a special join that can be referred to by

  1. an absolute path from a root entity to an association

  2. alias if an explicit alias has been defined via joinDefault() means

A path is considered absolute also if it is relative to the query root

The following query builder will create an implicit join for the path kittens when inspecting the select clause and reuse that implicit join in the where clause because of the use of an absolute path.

CriteriaBuilder<Integer> cb = cbf.create(em, Integer.class)
    .from(Cat.class)
    .select("kittens.age")
    .where("kittens.age").gt(1);

This will result in the following JPQL query

SELECT kittens_1.age
FROM Cat cat
LEFT JOIN cat.kittens kittens_1
WHERE kittens_1.age > 1

A relation dereference like alias.relation.property will always result in a JOIN being added for alias.relation. The exception to that is when the accessed property is the identifier property of the type of relation and that identifier is owned by alias i.e. the column is contained in the owner’s table. If the property is the identifier and the JpaProvider supports optimized id access, no join is generated but instead the expression is rendered as it is alias.relation.identifier.

Model awareness

Implicit joins are a result of a path dereference or explicit fetching. A path dereference can happen in any place where an expression is expected. An explicit fetch can be invoked on FullQueryBuilder instances which is the top type for CriteriaBuilder and PaginatedCriteriaBuilder.

Every implicit join will result in a so called "model-aware" join. The model-awareness of a join is responsible for determining the join type to use. Generally it is a good intuition to think of a model-aware join to always produce results, thus never restricting the result set but only extending it. A model-aware join currently decides between INNER and LEFT JOIN. The INNER JOIN is only used if

  • The parent join is an INNER JOIN

  • The relation is non-optional e.g. the optional attribute of a @ManyToOne or @OneToOne is false

This is different from how JPQL path expressions are normally interpreted but will result in a more natural output.

If you aren’t happy with the join types you can override them and even specify an alias for implicit joins via the joinDefault method and variants. Consider the following example for illustration purposes of the implicit joins.

CriteriaBuilder<Integer> cb = cbf.create(em, Integer.class)
    .from(Cat.class)
    .select("kittens.age")
    .where("kittens.age").gt(1)
    .innerJoinDefault("kittens", "kitty");

The builder first creates an implicit join for kittens with the join type LEFT JOIN because a Collection can never be non-optional. If you just had the SELECT clause, a NULL value would be produced for cats that don’t have kittens. But in this case the WHERE clause filters out these cats, because any comparison with NULL will result in UNKNOWN and thus FALSE.

Null-aware predicates like IS NULL are obviously an exception to this.

The last statement will take the default/implicit join for the path kittens, set the join type to INNER and the alias to kitty.

Although the generated aliases for implicit joins are deterministic, they might change over time so you should never use them to refer to implicit joins. Always use the full path to the join relation or define an alias and use that instead!

3.1.2. Explicit joins

Explicit joins are different from implicit/default joins in a sense that they are only accessible through their alias. You can have only one default join which is identified by it’s absolute path, but multiple explicit joins as these are identified by their alias. This means that you can also join a relation multiple times with different aliases.

You can create explicit joins with the join() method and variants. The following shows explicit and implicit joins used together.

CriteriaBuilder<Integer> cb = cbf.create(em, Integer.class)
    .from(Cat.class)
    .select("kittens.age")
    .where("kitty.age").gt(1)
    .innerJoin("kittens", "kitty");

This query will in fact create two joins. One for the explicitly inner joined kittens with the alias kitty and another for the implicitly left joined kittens used in the SELECT clause. The resulting JPQL looks like the following

SELECT kittens_1.age
FROM Cat cat
INNER JOIN cat.kittens kitty
LEFT JOIN cat.kittens kittens_1
WHERE kitty.age > 1

3.1.3. Fetched joins

Analogous to the FETCH keyword in JPQL, you can specify for every join node of a FullQueryBuilder if it should be fetched. Every join() method variant comes with a partner method, that does fetching for the joined path. In addition to that, there is also a simple fetch() method which can be provided with absolute paths to relations. These relations are then implicit/default join fetched, i.e. a default join node with fetching enabled is created for every relation.

You can make use of deep paths like kittens.kittens which will result in fetch joining two levels of kittens.
CriteriaBuilder<Cat> cb = cbf.create(em, Cat.class)
    .from(Cat.class)
    .leftJoinFetch("father", "dad")
    .whereOr()
        .where("dad").isNull()
        .where("dad.age").gt(1)
    .endOr()
    .fetch("kittens.kittens", "mother");

The father relation is left join fetched and given an alias which is then used in the WHERE clause. Two levels of kittens and the mother relation are join fetched.

SELECT cat
FROM Cat cat
LEFT JOIN FETCH cat.father dad
LEFT JOIN FETCH cat.kittens kittens_1
LEFT JOIN FETCH kittens_1.kittens kittens_2
LEFT JOIN FETCH cat.mother mother_1
WHERE dad IS NULL
   OR dad.age > 1
Although the JPA spec does not specifically allow aliasing fetch joins, every major JPA provider supports this.

When doing a scalar select instead of a query root select, Blaze Persistence automatically adapts the fetches to the new fetch owners.

CriteriaBuilder<Cat> cb = cbf.create(em, Cat.class)
    .from(Cat.class)
    .fetch("father.kittens")
    .select("father");

In this case we fetch the father relation and the kittens of the father. By also selecting the father relation, the fetch owner changes from the query root to the father. This has the effect, that the father is not fetch joined, as that would be invalid.

SELECT father_1
FROM Cat cat
LEFT JOIN cat.father father_1
LEFT JOIN FETCH father_1.kittens kittens_1

3.1.4. Array joins

Array joins are an extension to the JPQL grammar which offer a convenient way to create joins with an ON clause condition. An array join expression is a path expression followed by an opening bracket, the index expression and then the closing bracket e.g. arrayBase[indexExpression].

The type of the arrayBase expression must be either an indexed List e.g. use an @OrderColumn or a Map. In case of an indexed list, the type of the indexExpression must be numeric. For maps, the type must match the map key type as defined in the entity.

CriteriaBuilder<String> cb = cbf.create(em, String.class)
    .from(Cat.class)
    .select("localizedName[:language]")
    .where("localizedName[:language]").isNotNull();

Such a query will result in the following JPQL

SELECT localizedName_language
FROM Cat cat
LEFT JOIN cat.localizedName localizedName_language
       ON KEY(localizedName_language) = :language
WHERE localizedName_language IS NOT NULL

The relation localizedName is assumed to be a map of type Map<String, String> which maps a language code to a localized name.

In case of array expressions, the generated implicit/default join node is identified not only by the absolute path, but also by the index expression.

3.1.5. Correlated joins

JPQL allows subqueries to refer to a relation based on a join alias of the outer query within the from clause, also known as correlated join. A correlated join in Blaze Persistence can be done when initiating a subquery or be added as cross join to an existing subquery builder.

CriteriaBuilder<Long> cb = cbf.create(em, Long.class)
    .from(Cat.class, "c")
    .selectSubquery()
        .from("c.kittens", "kitty")
        .select("COUNT(kitty.id)")
    .end();

Such a query will result in the following JPQL

SELECT
    (
        SELECT COUNT(kitty.id)
        FROM c.kittens kitty
    )
FROM Cat c
Although JPA does not mandate the support for subqueries in the SELECT clause, every major JPA provider supports it.

You can even use the OUTER function or macros within the correlation join path!

CriteriaBuilder<Long> cb = cbf.create(em, Long.class)
    .from(Cat.class, "c")
    .selectSubquery()
        .from("OUTER(kittens)", "kitty")
        .select("COUNT(kitty.id)")
    .end();

This will result in the same JPQL as before as OUTER will refer to the query root of the outer query.

SELECT
    (
        SELECT COUNT(kitty.id)
        FROM c.kittens kitty
    )
FROM Cat c

3.1.6. Entity joins

An entity join is a type of join for unrelated entities, in the sense that no JPA mapping is required to join the entities. Entity joins are quite useful, especially when information from separate models(i.e. models that have no static dependency on each other) should be queried.

Entity joins are only supported in newer versions of JPA providers(Hibernate 5.1+, EclipseLink 2.4+, DataNucleus 5+)

Imagine a query that reports the count of people that are older than a cat for each cat

CriteriaBuilder<Long> cb = cbf.create(em, Long.class)
    .from(Cat.class, "c")
    .leftJoinOn(Person.class, "p")
        .on("c.age").ltExpression("p.age")
    .end()
    .select("c.name")
    .select("COUNT(p.id)")
    .groupBy("c.id", "c.name");

The JPQL representation looks just as expected

SELECT c.name, COUNT(p.id)
FROM Cat c
LEFT JOIN Person p
       ON c.age < p.age
GROUP BY c.id, c.name

Entity joins normally require a base alias but default to the query root when only a single query root is available.

INNER entity joins don’t need support from the JPA provider because these are rewritten to a JPQL compliant CROSS JOIN if necessary.

3.2. On clause

The ON clause is a filter predicate similar to the WHERE clause, but is evaluated while joining to restrict the joined elements. In case of INNER joins the ON clause has the same effect as when putting the predicate into the WHERE clause. However LEFT joins won’t filter out objects from the source even if the predicate doesn’t match any joinable object, but instead will produce a NULL value for the joined element.

The ON clause is used when using array joins to restrict the key of a join to the index expression.

Since the ON clause is only supported as of JPA 2.1, the usage with JPA 2.0 providers that have no equivalent vendor extension will fail.

The ON clause can be constructed by setting a JPQL predicate expression with setOnExpression() or by using the Predicate Builder API.

setOnExpression() Predicate Builder API
CriteriaBuilder<String> cb =
    cbf.create(em, String.class)
    .from(Cat.class)
    .select("l10nName")
    .leftJoinOn("localizedName", "l10nName")
      .setOnExpression("KEY(l10nName) = :lang")
    .where("l10nName").isNotNull();
CriteriaBuilder<String> cb =
    cbf.create(em, String.class)
    .from(Cat.class)
    .select("l10nName")
    .leftJoinOn("localizedName", "l10nName")
        .on("KEY(l10nName)").eq(":lang")
    .end()
    .where("l10nName").isNotNull();

The resulting JPQL looks as expected

SELECT localizedNameForLanguage
FROM Cat cat
LEFT JOIN cat.localizedName l10nName
       ON KEY(l10nName) = :lang
WHERE l10nName IS NOT NULL

3.3. VALUES clause

The VALUES clause is similar to the SQL VALUES clause in the sense that it allows to define a temporary set of objects for querying. There are 3 different types of values for which a VALUES clause can be created

  • Basic values (Integer, String, etc.)

  • Managed values (Entities, Embeddables, CTEs)

  • Identifiable values (Entities, CTEs)

For query caching reasons, a VALUES clause has a fixed number of elements. If you bind a collection that has a smaller size, behind the scenes the rest is filled up with NULL values which are filtered out by a WHERE clause automatically. Trying to bind a collection with a larger size will lead to an exception at bind time.

The VALUES clause is a feature that can be used for doing efficient batching. The number of elements can serve as batch size. Processing a collection iteratively and binding subsets to a query efficiently reuses query caches. For one-shot or rarely executed queries it might not be necessary to implement batching. In such cases use one of the overloads that use the collection size as number of elements.

The join alias that must be defined for a VALUES clause is reused as alias for the parameter to bind values.

CriteriaBuilder<String> cb = cbf.create(em, String.class)
    .fromValues(String.class, "myValue", 10)
    .select("myValue")
    .setParameter("myValue", valueCollection);
For some cases it might be better to make use of entity functions instead of a VALUES

3.3.1. Basic values

The following basic value types are supported

  • Boolean

  • Byte

  • Short

  • Integer

  • Long

  • Float

  • Double

  • Character

  • String

  • BigInteger

  • BigDecimal

  • java.sql.Time

  • java.sql.Date

  • java.sql.Timestamp

  • java.util.Date

  • java.util.Calendar

Collection<String> valueCollection = Arrays.asList("value1", "value2");
CriteriaBuilder<String> cb = cbf.create(em, String.class)
    .fromValues(String.class, "myValue", valueCollection)
    .select("myValue");

The resulting logical JPQL doesn’t include individual parameters, but specifies the count of the values. The alias of the values clause from item also represents the parameter name.

SELECT myValue
FROM String(2 VALUES) myValue

Behind the scenes, a type called ValuesEntity is used to be able to implement the VALUES clause.

For further information on TREAT functions, take a look at the JPQL functions chapter.

3.3.2. Non-Standard basic values

To support non-standard basic types the fromValues(Class entityType, String attribute, String alias, int size) method has to be used which will determine the proper SQL type based on the SQL type of the specified entity attribute.

Collection<String> valueCollection = Arrays.asList("value1", "value2");
CriteriaBuilder<String> cb = cbf.create(em, String.class)
    .fromValues(Cat.class, "name", "myValue", valueCollection)
    .select("myValue");

The logical JPQL encodes this as

SELECT myValue
FROM String(2 VALUES LIKE Cat.name) myValue

3.3.3. Managed values

Managed values are objects of a JPA managed type i.e. entities or embeddables. A VALUES clause for such types will include all properties of that type, so be careful when using this variant. For using only the id part of a managed type, take a look at the identifiable values variant. If using all properties of an entity or embeddable is not appropriate for you, you should consider creating a custom CTE entity that covers only the subset of properties you are interested in and finally convert your entity or embeddable object to that new type so it can be used with the VALUES clause.

Let’s look at an example

@Embeddable
class MyEmbeddable {
    private String property1;
    private String property2;
}

The embeddable defines 2 properties and a VALUES query for objects of that type might look like this

Collection<MyEmbeddable> valueCollection = ...
CriteriaBuilder<MyEmbeddable> cb = cbf.create(em, MyEmbeddable.class)
    .fromValues(MyEmbeddable.class, "myValue", valueCollection)
    .select("myValue");

The JPQL for such a query looks roughly like the following

SELECT myValue
FROM MyEmbeddable(1 VALUES) myValue

3.3.4. Identifiable values

Identifiable values are also objects of a JPA managed type, but restricted to identifiable managed types i.e. no embeddables. Every entity and CTE entity is an identifiable managed type and can thus be used in fromIdentifiableValues().

The main difference to the managed values variant is that only the identifier properties of the objects are bound instead of all properties.

Let’s look at an example

Collection<Cat> valueCollection = ...
CriteriaBuilder<Long> cb = cbf.create(em, Long.class)
    .fromIdentifiableValues(Cat.class, "cat", valueCollection)
    .select("cat.id");

The JPQL for such a query looks roughly like the following

SELECT cat.id
FROM Cat.id(1 VALUES) cat

The values parameter "cat" will still expect instances of the type Cat, but will only bind the id attribute values. This also works for embedded ids and access to the embedded values works just like expected, by dereferencing the embeddable further i.e. alias.embeddable.property

When using the identifiable values, only the id values are available for the query. Using any other property will lead to an exception.

3.4. Before and after DML in CTEs

When using DML in CTEs it depends on the DBMS what state a FROM element might give. Normally this is not problematic as it is rarely necessary to do DML and a SELECT for the same entity in one query. When it is necessary to do that, it is strongly advised to make use of fromOld() or fromNew() to use the state before or after side-effects happen.

For example usage and further information, take a look into the Updatable CTEs chapter

4. Predicate Builder

The Predicate Builder API tries to simplify construction but also the reuse of predicates. There are multiple clauses and expressions that support entering the API:

Every predicate builder follows the same scheme:

  • An entry method can be used to start the builder with the left hand side of a predicate

  • Entry methods are additive, and finishing a predicate results in adding that to the compound predicate

  • Once a predicate has been started, it must be properly finished

  • On the top level, a method to directly set a JPQL predicate expression is provided

Subqueries are not supported to be directly embedded into expressions but instead have to be built with the builder API.

There are multiple different entry methods to cover all possible usage scenarios. The entry methods are mostly named after the clause in which they are defined e.g. in the WHERE clause the entry methods are named where(), whereExists() etc. The following list of possible entry methods refers to WHERE clause entry methods for easier readability.

where(String expression)

Starts a builder for a predicate with the given expression on the left hand side.

CriteriaBuilder<Cat> cb = cbf.create(em, Cat.class, "cat")
    .where("name").eq("Felix");
SELECT cat FROM Cat cat
WHERE cat.name = :param_1
whereExists() & whereNotExists()

Starts a subquery builder for an exists predicate.

CriteriaBuilder<Cat> cb = cbf.create(em, Cat.class, "cat")
    .whereExists()
        .from(Cat.class, "subCat")
        .select("1")
        .where("subCat").notEqExpression("cat")
        .where("subCat.name").eqExpression("cat.name")
    .end();
SELECT cat FROM Cat cat
WHERE EXISTS (SELECT 1 FROM Cat subCat WHERE subCat <> cat AND subCat.name = cat.name)
whereCase()

Starts a general case when builder for a predicate with the resulting case when expression on the left hand side.

CriteriaBuilder<Cat> cb = cbf.create(em, Cat.class, "cat")
    .whereCase()
        .when("cat.name").isNull()
            .then(1)
        .when("LENGTH(cat.name)").gt(10)
            .then(2)
        .otherwise(3)
    .eqExpression(":someValue");
SELECT cat FROM Cat cat
WHERE CASE
      WHEN cat.name IS NULL THEN :param_1
      WHEN LENGTH(cat.name) > 10 THEN :param_2
      ELSE :param_3
      END = :someValue
whereSimpleCase(String expression)

Starts a general case when builder for a predicate with the resulting case when expression on the left hand side.

CriteriaBuilder<Cat> cb = cbf.create(em, Cat.class, "cat")
    .whereSimpleCase("SUBSTRING(cat.name, 1, 2)")
        .when("'Dr.'", "'Doctor'")
        .when("'Mr'", "'Mister'")
        .otherwise("'Unknown'")
    .notEqExpression("cat.fullTitle");
SELECT cat FROM Cat cat
WHERE CASE SUBSTRING(cat.name, 1, 2)
      WHEN 'Dr.' THEN 'Doctor'
      WHEN 'Mr.' THEN 'Mister'
      ELSE 'Unknown'
      END <> cat.fullTitle
whereSubquery()

Starts a subquery builder for a predicate with the resulting subquery expression on the left hand side.

CriteriaBuilder<Cat> cb = cbf.create(em, Cat.class, "cat")
    .whereSubquery()
        .from(Cat.class, "subCat")
        .select("subCat.name")
        .where("subCat.id").eq(123)
    .end()
    .eqExpression("cat.name");
SELECT cat FROM Cat cat
WHERE (SELECT subCat.name FROM Cat subCat WHERE subCat.id = :param_1) = cat.name
whereSubquery(String subqueryAlias, String expression)

Like whereSubquery() but instead the expression is used on the left hand side. Occurrences of subqueryAlias in the expression will be replaced by the subquery expression.

CriteriaBuilder<Cat> cb = cbf.create(em, Cat.class, "cat")
    .whereSubquery("subQuery1", "subQuery1 + 10")
        .from(Cat.class, "subCat")
        .select("subCat.age")
        .where("subCat.id").eq(123)
    .end()
    .gt(10);
SELECT cat FROM Cat cat
WHERE (SELECT subCat.age FROM Cat subCat WHERE subCat.id = :param_1) + 10 > 10
whereSubqueries(String expression)

Starts a subquery builder capable of handling multiple subqueries and uses the given expression on the left hand side of the predicate. Subqueries are started with with(String subqueryAlias) and aliases occurring in the expression will be replaced by the respective subquery expressions.

CriteriaBuilder<Cat> cb = cbf.create(em, Cat.class, "cat")
    .whereSubqueries("subQuery1 + subQuery2")
        .with("subQuery1")
            .from(Cat.class, "subCat")
            .select("subCat.age")
            .where("subCat.id").eq(123)
        .end()
        .with("subQuery2")
            .from(Cat.class, "subCat")
            .select("subCat.age")
            .where("subCat.id").eq(456)
        .end()
    .end()
    .gt(10);
SELECT cat FROM Cat cat
WHERE (SELECT subCat.age FROM Cat subCat WHERE subCat.id = :param_1)
      + (SELECT subCat.age FROM Cat subCat WHERE subCat.id = :param_2) > 10
whereOr() & whereAnd()

Starts a builder for a nested compound predicate. Elements of that predicate are connected with OR or AND respectively.

CriteriaBuilder<Cat> cb = cbf.create(em, Cat.class, "cat")
    .whereOr()
        .where("cat.name").isNull()
        .whereAnd()
            .where("LENGTH(cat.name)").gt(10)
            .where("cat.name").like().value("F%").noEscape()
        .endAnd()
    .endOr();
SELECT cat FROM Cat cat
WHERE cat.name IS NULL OR LENGTH(cat.name) > :param_1 AND cat.name LIKE :param_2
setWhereExpression(String expression)

Sets the WHERE clause to the given JPQL predicate expression overwriting existing predicates.

CriteriaBuilder<Cat> cb = cbf.create(em, Cat.class, "cat")
    .setWhereExpression("cat.name IS NULL OR LENGTH(cat.name) > 10 AND cat.name LIKE 'F%'");
SELECT cat FROM Cat cat
WHERE cat.name IS NULL OR LENGTH(cat.name) > 10 AND cat.name LIKE 'F%'
setWhereExpressionSubqueries(String expression)

A combination of setWhereExpression and whereSubqueries. Sets the WHERE clause to the given JPQL predicate expression overwriting existing predicates. Subqueries replace aliases in the expression.

CriteriaBuilder<Cat> cb = cbf.create(em, Cat.class, "cat")
    .setWhereExpressionSubqueries("cat.name IS NULL AND subQuery1 + subQuery2 > 10")
        .with("subQuery1")
            .from(Cat.class, "subCat")
            .select("subCat.age")
            .where("subCat.id").eq(123)
        .end()
        .with("subQuery2")
            .from(Cat.class, "subCat")
            .select("subCat.age")
            .where("subCat.id").eq(456)
        .end()
    .end();
SELECT cat FROM Cat cat
WHERE cat.name IS NULL
  AND (SELECT subCat.age FROM Cat subCat WHERE subCat.id = :param_1)
      + (SELECT subCat.age FROM Cat subCat WHERE subCat.id = :param_2) > 10

4.1. Restriction Builder

The restriction builder is used to build a predicate for an existing left hand side expression and chains to the right hand side expression. It supports all standard predicates from JPQL and expressions can be of the following types:

Value/Parameter

The actual value will be registered as parameter value and a named parameter expression will be added instead. Methods that accept values typical accept arguments of type Object.

Expression

A JPQL scalar expression can be anything. A path expression, literal, parameter expression, etc.

Subquery

A subquery is always created via a subquery builder. Variants for replacing aliases in expressions with subqueries also exist.

Available predicates

BETWEEN & NOT BETWEEN

The between methods expect the start value and chain to the between builder which is terminated with the end value.

CriteriaBuilder<Cat> cb = cbf.create(em, Cat.class, "cat")
    .where("cat.age").between(1).and(10)
    .where("cat.age").notBetween(5).and(6);
SELECT cat FROM Cat cat
WHERE cat.age     BETWEEN :param_1 AND :param_2
  AND cat.age NOT BETWEEN :param_3 AND :param_4
EQ, NOT EQ, LT, LE, GT & GE

The comparison predicates additionally support quantified subqueries e.g. ALL and ANY.

CriteriaBuilder<Cat> cb = cbf.create(em, Cat.class, "cat")
    .where("cat.age").notEq(10)
    .where("cat.age").ge().all()
        .from(Cat.class, "subCat")
        .select("subCat.age")
    .end();
SELECT cat FROM Cat cat
WHERE cat.age <> :param_1
  AND cat.age >= ALL(
      SELECT subCat.age
      FROM Cat subCat
  )
IN & NOT IN

This predicate supports value collections, literal expressions or in case of a single parameter expression, that parameter expression can be a collection valued parameter.

CriteriaBuilder<Cat> cb = cbf.create(em, Cat.class, "cat")
    .where("cat.age").in(1, 2, 3, 4)
    .where("cat.age").notIn()
        .from(Cat.class, "subCat")
        .select("subCat.age")
        .where("subCat.name").notEqExpression("cat.name")
    .end();
SELECT cat FROM Cat cat
WHERE cat.age IN (:param_1, :param_2, :param_3, :param_4)
  AND cat.age NOT IN(
      SELECT subCat.age
      FROM Cat subCat
      WHERE subCat.name <> cat.name
  )
IS NULL & IS NOT NULL

A simple null check.

CriteriaBuilder<Cat> cb = cbf.create(em, Cat.class, "cat")
    .where("cat.age").isNotNull();
SELECT cat FROM Cat cat
WHERE cat.age IS NOT NULL
IS EMPTY & IS NOT EMPTY

Checks if the left hand side is empty. Only valid for path expressions that evaluate to collections.

CriteriaBuilder<Cat> cb = cbf.create(em, Cat.class, "cat")
    .where("cat.kittens").isNotEmpty();
SELECT cat FROM Cat cat
WHERE cat.kittens IS NOT EMPTY
MEMBER OF & NOT MEMBER OF

Checks if the left hand side is a member of the collection typed path expression.

CriteriaBuilder<Cat> cb = cbf.create(em, Cat.class, "cat")
    .where("cat.father").isNotMemberOf("cat.kittens");
SELECT cat FROM Cat cat
WHERE cat.father NOT MEMBER OF cat.kittens
LIKE & NOT LIKE

A LIKE with specifiable case sensitivity that must be terminated finally with an escape character or noEscape().

CriteriaBuilder<Cat> cb = cbf.create(em, Cat.class, "cat")
    .where("cat.name").like().value("Bill%").noEscape()
    .where("cat.name").notLike(false).expression("'%abc%'").noEscape();
SELECT cat FROM Cat cat
WHERE cat.name LIKE :param_1
  AND UPPER(cat.name) NOT LIKE UPPER('%abc%')

4.2. Case When Expression Builder

The binary predicates EQ, NOT EQ, LT, LE, GT & GE also allow to create case when expressions for the right hand side via a builder API.

CriteriaBuilder<Cat> cb = cbf.create(em, Cat.class, "cat")
    .where("cat.name").eq()
        .caseWhen("cat.father").isNotNull()
            .thenExpression("cat.father.name")
        .caseWhen("cat.mother").isNotNull()
            .thenExpression("cat.mother.name")
        .otherwise("Billy");
SELECT cat
FROM Cat cat
LEFT JOIN cat.father father_1
LEFT JOIN cat.mother mother_1
WHERE cat.name = CASE
    WHEN father_1 IS NOT NULL
        THEN father_1.name
    WHEN mother_1 IS NOT NULL
        THEN mother_1.name
    ELSE
        :param_1
    END

5. Where clause

The WHERE clause has mostly been described already in the [Predicate Builder] chapter. The clause is applicable to all statement types, but implicit joins are only possible in SELECT statements, therefore it is advised to move relation access to an exists subquery in DML statements like

CriteriaBuilder<Integer> cb = cbf.update(em, Cat.class, "c")
    .setExpression("age", "age + 1")
    .whereExists()
        .from(Cat.class, "subCat")
        .where("subCat.id").eqExpression("c.id")
        .where("subCat.father.name").like().value("Bill%").noEscape()
    .end();

Which will roughly render to the following JPQL

UPDATE Cat c
SET c.age = c.age + 1
WHERE EXISTS(
    SELECT 1
    FROM Cat subCat
    LEFT JOIN subCat.father father_1
    WHERE subCat.id = c.id
      AND father_1.name LIKE :param_1
)

5.1. Keyset pagination support

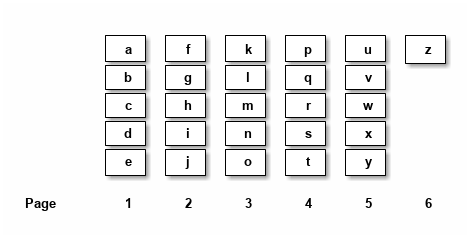

Keyset pagination or scrolling/filtering is way to efficiently paginate or scroll through a large data set. The idea of a keyset is, that every tuple can be uniquely identified by that keyset. Pagination only makes sense when the tuples in a data set are ordered and keyset pagination in contrast to offset pagination makes efficient use of the ordering property of the data set. By remembering the highest and lowest keysets of a page, it is possible to query the previous and next pages efficiently.

Apart from the transparent keyset pagination support, it is also possible to implement keyset scrolling/filtering manually. A keyset consists of the values of the ORDER BY expressions of a tuple and the last expression must uniquely identify a tuple. The id of an entity is not only a good candidate in general for the last expression, but also currently the only possible expression to satisfy this constraint.

The following query will order cats by their birthday and second by their id.

CriteriaBuilder<Cat> cb = cbf.create(em, Cat.class, "cat")
    .orderByAsc("cat.birthday")
    .orderByAsc("cat.id")
SELECT cat FROM Cat cat
ORDER BY cat.birthday ASC, cat.id ASC

5.1.1. Positional keyset pagination

In order to receive only the first 10 cats you would do

List<Cat> cats = cb.setMaxResults(10)
    .getResultList();

In order to receive the next cats after the last seen cat (highest keyset) with positional keyset elements you would do

Cat lastCat = cats.get(cats.size() - 1);
List<Cat> nextCats = cb.afterKeyset(lastCat.getBirthday(), lastCat.getId())
    .getResultList();

which roughly translates to the following JPQL

SELECT cat FROM Cat cat
WHERE cat.birthday > :_keysetParameter_0 OR (
    cat.birthday = :_keysetParameter_0 AND
    cat.id > :_keysetParameter_1
)
ORDER BY cat.birthday ASC NULLS LAST, cat.id ASC NULLS LAST

The positional part roughly means that the keyset element as passed into afterKeyset() or beforeKeyset() must match the order of the corresponding ORDER BY expressions.

Note that this is in general much more efficient than an OFFSET based paging/scrolling because this approach can scroll to the next and previous page in O(log n), whereas using OFFSET results in a complexity of O(n), thus making it harder to get to latter pages in big data sets. This is due to how a keyset paginated query can efficiently traverse an index on the DBMS side. Using OFFSET paging requires actually counting tuples that should be skipped which is less efficient.

Similarly to scrolling to a page that comes after a keyset, it is also possible to scroll to a page that comes before a keyset

Cat firstCat = nextCats.get(0);
List<Cat> previousCats = cb.beforeKeyset(firstCat.getBirthday(), firstCat.getId())
    .getResultList();
// cats and previousCats are equal

but this time the JPQL looks differently

SELECT cat FROM Cat cat
WHERE cat.birthday < :_keysetParameter_0 OR (
    cat.birthday = :_keysetParameter_0 AND
    cat.id < :_keysetParameter_1
)
ORDER BY cat.birthday DESC NULLS FIRST, cat.id DESC NULLS FIRST

This is how keyset pagination works, but still, the DBMS can use the same index as before. This time, it just traverses it backwards!

5.1.2. Expression based keyset pagination

This is just like positional keyset pagination but instead of relying on the order of keyset elements and ORDER BY expressions, this makes use of the KeysetBuilder which matches by the expression.

Cat firstCat = nextCats.get(0);
List<Cat> previousCats = cb.beforeKeyset()
        .with("cat.birthday", firstCat.getBirthday())
        .with("cat.id", firstCat.getId())
    .end()
    .getResultList();
// cats and previousCats are equal

This results in the same JPQL as seen above. It’s a matter of taste which style to choose.

5.1.3. Keyset page based keyset pagination

When using the transparent keyset pagination support through the PaginatedQueryBuilder API with keyset extraction it is possible to get access to an extracted KeysetPage and thus also to the highest and lowest keysets.

These keysets can also be used for paging/scrolling although when already having access to a KeysetPage it might be better to use the PaginatedQueryBuilder API instead.

6. Group by and having clause

The GROUP BY and HAVING clause are closely. Logically the HAVING clause is evaluated after the GROUP BY clause. A HAVING clause does not make sense without a GROUP BY clause.

6.1. Group by

When a GROUP BY clause is used, most DBMS require that every non-aggregate expression that appears in the following clauses must also appear in the GROUP BY clause

  • SELECT

  • ORDER BY

  • HAVING

This is due to the fact that these clauses are logically executed after the GROUP BY clause. Some DBMS even go as far as not allowing expressions of a certain complexity in the GROUP BY clause. For such expressions, the property/column references have to be extracted and put into the GROUP BY clause instead, so that the composite expressions can be built after grouping.

By default, the use of complex expressions is allowed in groupBy(), but can be disabled by turning on the compatible mode.

OpenJPA only supports path expressions and simple function expression in the GROUP BY clause
Currently it is not possible to have a HAVING clause when using the PaginatedCriteriaBuilder API or count query generation. Also see #616

6.1.1. Implicit group by generation

Fortunately all these issues with different DBMS and the GROUP BY clause is handled by Blaze Persistence through implicit group by generation. Implicit group by generation adds just the expressions that are necessary for a query to work on a DBMS without changing it’s semantics. The generation will kick in as soon as

  • The GROUP BY clause is used

  • An aggregate function is used

If you don’t like the group by generation or you run into a bug, you can always disable it on a per-query and per-clause basis if you like.

Let’s look at an example

CriteriaBuilder<Tuple> cb = cbf.create(em, Tuple.class)
    .from(Cat.class)
    .select("age")
    .select("COUNT(*)");

This will result in the following JPQL query

SELECT cat.age, COUNT(*)
FROM Cat cat
GROUP BY cat.age

The grouping is done based on the non-aggregate expressions, in this case, it is just the age of the cat. If you disabled the implicit group by generation for the SELECT clause, the GROUP BY clause would be missing and you’d have to add it manually like

CriteriaBuilder<Tuple> cb = cbf.create(em, Tuple.class)
    .from(Cat.class)
    .select("age")
    .select("COUNT(*)")
    .groupBy("age");

which isn’t too painful at first, but can get quite cumbersome when having many expressions.

Not using implicit group by generation for the HAVING clause when using non-trivial expression like e.g. age + 1 might lead to problems on some DBMS. MySQL for example can only handle column references in the GROUP BY and doesn’t match complex expressions for the HAVING clause.
Subqueries are generally not allowed in the GROUP BY clause, thus correlated properties/columns have to be extracted. Implicit group by generation also takes care of that.
Due to the fact that subqueries are not allowed, the SIZE() function can’t be used in this clause.

6.1.2. Group by Entity

Although the JPA spec mandates that a JPA provider must support grouping by an entity, it is apparently not asserted by the JPA TCK. Some implementations don’t support this feature which is why Blaze Persistence expands an entity in the GROUP BY clause automatically for you.

This also works when relying on implicit group by generation i.e.

CriteriaBuilder<Tuple> cb = cbf.create(em, Tuple.class)
    .from(Cat.class, "c")
    .leftJoin("c.kittens", "kitty")
    .select("c")
    .select("COUNT(*)");

will result in the following logical JPQL query

SELECT c, COUNT(*)
FROM Cat c
LEFT JOIN c.kittens kitty
GROUP BY c

but will expand c to all singular attributes of it’s type.

Hibernate still lacks support for this feature which is one of the reasons for doing the expansion within Blaze Persistence

6.2. Having clause

The HAVING clause is similar to the WHERE clause and most of the inner workings are described in the [Predicate Builder] chapter. The only difference is that the HAVING clause in contrast to the WHERE clause can contain aggregate functions and is logically executed after the GROUP BY clause.

The API for using the HAVING clause is the same as for the WHERE clause, except that it uses having instead of the where prefix.

CriteriaBuilder<Tuple> cb = cbf.create(em, Tuple.class)
    .from(Cat.class)
    .select("age")
    .select("COUNT(*)")
    .groupBy("age")
    .having("COUNT(*)").gt(2);
SELECT cat.age, COUNT(*)
FROM Cat cat
GROUP BY cat.age
HAVING COUNT(*) > :param_1

7. Order by clause

An ORDER BY clause can be used to order the underlying result list. Depending on the mapping and the collection type in an entity, the order of elements contained in collection may or may not be preserved.

Contrary to what the JPA spec allows, Blaze Persistence also allows to use the ORDER BY clause in subqueries.

By default, the use of complex expressions is allowed in orderBy(), but can be disabled by turning on the compatible mode.

Also note that by default, Blaze Persistence chose to use the NULLS LAST behavior instead of relying on the DBMS default, in order to provide better portability. It is strongly advised to always define the null precedence in order to get deterministic results.

For convenience Blaze Persistence also offers you shorthand methods for ordering ascending or descending that make use of the default null precedence.

CriteriaBuilder<Tuple> cb = cbf.create(em, Tuple.class)
    .from(Cat.class)
    .select("age")
    .select("id")
    .orderByAsc("age")
    .orderByDesc("id");
SELECT cat.age, cat.id
FROM Cat cat
ORDER BY
    cat.age ASC NULLS LAST,
    cat.id DESC NULLS LAST

Apart from specifying the expression itself for an ORDER BY element, you can also refer to a select alias.

This is also the only way to order by the result of a subquery. Many DBMS do not support the occurrence of a subquery in ORDER BY directly, so Blaze Persistence dos not allow to do that either.
CriteriaBuilder<Tuple> cb = cbf.create(em, Tuple.class)
    .from(Cat.class)
    .selectSubquery("olderCatCount")
        .from(Cat.class, "subCat")
        .select("COUNT(*)")
        .where("subCat.age").gtExpression("cat.age")
    .end()
    .select("id")
    .orderByAsc("olderCatCount")
    .orderByDesc("id");
SELECT
    (
        SELECT COUNT(*)
        FROM Cat subCat
        WHERE subCat.age > cat.age
    ) AS olderCatCount,
    cat.id
FROM Cat cat
ORDER BY
    olderCatCount ASC NULLS LAST,
    cat.id DESC NULLS LAST

8. Select clause

The SELECT clause can be used to specify projections that should be returned by a query. Blaze Persistence completely aligns with JPQL regarding the support of the SELECT clause, except for constructor expressions. The reason for this is

  1. Since select items are defined separately, there is no easy syntax that could be supported

  2. Classes that users would like to use, might not be available on the classpath

  3. The use of a fully qualified class name and pass elements by position makes the query hard to read

Instead of constructor expressions, Blaze Persistence introduces the concept of an ObjectBuilder which, as you will see in the [Select new support] and [Object builder] chapters, are a lot mightier.

Note that by default most types of queries have a default select clause that fits most of the needs.

Query with single root

Such queries have the alias of the root as default select item which has the effect that entities of the query root type are selected.

Subquery in EXISTS

Uses the scalar value 1 as default select item.

The defaults are replaced by the first call to one of the select() variants.

8.1. Distinct support

Distinct can be applied on any query by calling distinct().

CriteriaBuilder<Tuple> cb = cbf.create(em, Tuple.class)
    .from(Cat.class)
    .distinct()
    .select("age");
SELECT DISTINCT cat.age
FROM Cat cat
Currently it is not possible to do a distinct when using the PaginatedCriteriaBuilder API.

In addition to that, all aggregate functions as defined per JPQL support aggregating distinct values.

CriteriaBuilder<Tuple> cb = cbf.create(em, Tuple.class)
    .from(Cat.class)
    .select("COUNT(DISTINCT age)");
SELECT COUNT(DISTINCT cat.age)
FROM Cat cat
This even works with embedded ids with Hibernate on DBMS that don’t support a distinct count for tuple. Also see HHH-11042

8.2. Tuple select

When selecting multiple expressions, you can decide between the query return types Object[] and javax.persistence.Tuple.

Some persistence providers might return the object directly when having just a single select item, even if you pass Object[]. This will not happen when using javax.persistence.Tuple as query return type.

You can define aliases for select items and access the tuple elements by name or by a 0-based index.

CriteriaBuilder<Tuple> cb = cbf.create(em, Tuple.class)
    .from(Cat.class)
    .select("name", "catName")
    .select("age", "catAge");
Tuple firstTuple = cb.getResultList().get(0);
// Access tuple element by alias
String name = firstTuple.get("catName", String.class);
// Access tuple element by index
Long age = firstTuple.get(1, Long.class);
SELECT cat.name, cat.age
FROM Cat cat

8.3. Case expressions

The builder API for CASE WHEN in the SELECT clause is the same as for predicate builders except for different entry points. All entry methods take an optional select alias too.

Although there is an API for constructing CASE WHEN expressions, you can also just make use of them in a normal expression of select()

8.3.1. Searched case expression (simple case)

Simple case expressions can be done with selectSimpleCase() and support matching a case expression by equality with an expression for every WHEN branch.

CriteriaBuilder<Tuple> cb = cbf.create(em, Tuple.class)
    .from(Cat.class, "cat")
    .selectSimpleCase("SUBSTRING(cat.name, 1, 2)")
        .when("'Dr'", "'Doctor'")
        .when("'Mr'", "'Mister'")
        .otherwise("'Unknown'")
    .select("cat.age");
SELECT
    CASE SUBSTRING(cat.name, 1, 2)
          WHEN 'Dr.' THEN 'Doctor'
          WHEN 'Mr.' THEN 'Mister'
          ELSE 'Unknown'
    END,
    cat.age
FROM Cat cat

8.3.2. Conditional case expression

The more general form of a CASE WHEN supports arbitrary conditions in the WHEN part.

CriteriaBuilder<Tuple> cb = cbf.create(em, Tuple.class)
    .from(Cat.class)
    .selectCase()
        .when("cat.name").isNull()
            .then(1)
        .when("LENGTH(cat.name)").gt(10)
            .then(2)
        .otherwise(3)
    .select("cat.age");
SELECT
    CASE
          WHEN cat.name IS NULL THEN :param_1
          WHEN LENGTH(cat.name) > 10 THEN :param_2
          ELSE :param_3
    END,
    cat.age
FROM Cat cat

8.4. Subqueries

Although the JPA spec does mandate support for subqueries in the SELECT clause, every major JPA provider supports it, which is why Blaze Persistence also allows it. A subquery is the only type of expression that has to be created through the builder API, all other expressions can be created by passing the expression as string.

CriteriaBuilder<Tuple> cb = cbf.create(em, Tuple.class)
    .from(Cat.class, "cat")
    .selectSubquery()
        .from(Cat.class, "subCat")
        .select("COUNT(*)")
        .where("subCat.age").gtExpression("cat.age")
    .end();
SELECT
    (
        SELECT COUNT(*)
        FROM Cat subCat
        WHERE subCa.age > cat.age
    )
FROM Cat cat

8.4.1. Wrapping expression

Sometimes you might want to have more complex expressions that contain one or multiple subqueries. For such cases there are variants that accept

The single subquery variant requires a temporary alias for the subquery and an expression containing it. Every occurrence of the so called subqueryAlias will be replaced logically by the subquery itself.

CriteriaBuilder<Tuple> cb = cbf.create(em, Tuple.class)
    .from(Cat.class, "cat")
    .selectSubquery("mySubqueryAlias", "1 + mySubqueryAlias")
        .from(Cat.class, "subCat")
        .select("COUNT(*)")
        .where("subCat.age").gtExpression("cat.age")
    .end();
SELECT
    1 + (
        SELECT COUNT(*)
        FROM Cat subCat
        WHERE subCa.age > cat.age
    )
FROM Cat cat

As you can see, the subquery alias mySubqueryAlias in the expression 1 + mySubqueryAlias has been replaced by the subquery.

The multiple subquery variant is very similar, except that you first have to define the expression i.e. 1 + mySubqueryAlias1 + mySubqueryAlias2 and then, subsequently define for each alias the respective subquery.

CriteriaBuilder<Tuple> cb = cbf.create(em, Tuple.class)
    .from(Cat.class, "cat")
    .selectSubqueries("1 + mySubqueryAlias1 + mySubqueryAlias2")
        .with("mySubqueryAlias1")
            .from(Cat.class, "subCat")
            .select("COUNT(*)")
            .where("subCat.age").gtExpression("cat.age")
        .end()
        .with("mySubqueryAlias2")
            .from(Cat.class, "subCat")
            .select("COUNT(*)")
            .where("subCat.age").ltExpression("cat.age")
        .end()
    .end();
SELECT
    1 + (
        SELECT COUNT(*)
        FROM Cat subCat
        WHERE subCa.age > cat.age
    ) + (
         SELECT COUNT(*)
         FROM Cat subCat
         WHERE subCa.age < cat.age
     )
FROM Cat cat

8.5. Select new support

Like already explained in the beginning, constructor expressions are supported differently in Blaze Persistence. Instead of having to use the fully qualified class name in the query, Blaze Persistence offers a concept called [Object builder]. On top of that API, it implements features similar to the constructor expression of JPQL.

The selectNew(Constructor) variant is probably the one that comes closest to the constructor expression. That method allows to pass in a constructor object which will be used to construct objects when building the result list. The argument types of the constructor must match the types of the select items.

class CatModel {

    public CatModel(String name, Long age) {
        //...
    }
}
CriteriaBuilder<CatModel> cb = cbf.create(em, Tuple.class)  (1)
    .from(Cat.class, "cat")
    .selectNew(CatModel.class.getConstructor(String.class, Long.class))  (2)
        .with("cat.name")
        .with("cat.age")
    .end();
1 Query type is Tuple
2 Query type changed to CatModel

See how the query type changed because of the call to selectNew()? The JPQL contains no information about the constructor, just the scalar selects.

SELECT cat.name, cat.age
FROM Cat cat

Having to explicitly declare the parameter types for retrieving the constructor is not very convenient. That’s why there is the variant which accepts the Class instead. That way the constructor selection is deferred to the runtime and is done based on the tuple elements types. The selection is done once based on the types of the first tuple.

CriteriaBuilder<CatModel> cb = cbf.create(em, Tuple.class)
    .from(Cat.class, "cat")
    .selectNew(CatModel.class)
        .with("cat.name")
        .with("cat.age")
    .end();

Not only looks like the one from before, but also does the same. It’s just less code that is required. The only difference is the point in time where errors can happen. By choosing an explicit constructor at query building time, errors like non-accessible or non-existing constructors can show up earlier. By using the Class approach, errors would only show up when processing the query results. This behavior might change in the future i.e. due to improvements we might be able to determine the constructor already at query building time. Such a behavior could then of course be disabled if required.

8.6. Object builder

As mentioned before, the selectNew() approaches with Class and Constructor both build on top of the more general approach of ObjectBuilder. An ObjectBuilder instance can be provided to a CriteriaBuilder and PaginatedCriteriaBuilder via selectNew(ObjectBuilder).

It is responsible for

  • providing the JPQL expressions for select items

  • build objects of the target type from an object array representing the tuple for the select items

  • reduce the result list or simply return it

The following example should illustrate the functionality

CriteriaBuilder<CatModel> cb = cbf.create(em, Tuple.class)
    .from(Cat.class, "cat")
    .selectNew(new ObjectBuilder<CatModel>() {

        @Override
        public <X extends SelectBuilder<X>> void applySelects(X queryBuilder) {
            queryBuilder
                .select("name")
                .select("age");
        }

        @Override
        public CatModel build(Object[] tuple) {
            return new CatModel(
                (String) tuple[0],
                (Long)   tuple[1]
            );
        }

        @Override
        public List<CatModel> buildList(List<CatModel> list) {
            return list;
        }
    });

Looks like boilerplate for this simple query?

SELECT cat.name, cat.age
FROM Cat cat

You are right, but keep in mind, this isn’t an API that a simple user should directly implement. This API allows to keep the select item providing and consuming parts together, but decouple it from the actual query. You can have one ObjectBuilder for multiple queries of the same query root.

In real life applications it is often required to have some sort of view model i.e. a model specifically for the UI. Without an API that allows to decouple the projection from the rest, you would

  • Duplicate querying code and adapt only necessary projection parts

  • Implement dynamic queries through string concatenation and essentially implement a custom query builder

  • Stick with using just the entity model and try to cope with limitations and problems

The ObjectBuilder API helps you in all these regards

  • No need to copy querying code, only need to make use of object builders and depending on the needs, use a different builder

  • Blaze Persistence already is a dynamic query builder API and strictly works with the JPA metamodel to catch errors early

  • As long as you stick to using basic values lazy loading won’t bite you

Although this simple example doesn’t do anything fancy in buildList(), you could do anything in there

  • Build nested structures

  • Filter/Sort objects

  • Query other data stores

  • etc.

The best example for a consumer of this API is the entity-view module which makes use of the ObjectBuilder interface to implement efficient projection.

Before you start building a sophisticated ObjectBuilder, take a look at entity views to see if it fits your needs.

9. Polymorphism

In JPA, every query is by default polymorphic. This means that whenever a FROM clause element might have subtypes, all subtypes are queried. The JPA spec only requires providers to support polymorphic querying for entity types, but some providers allow querying also for non-managed types like interfaces. Querying an interface is like querying all entities that implement that particular interface.

JPA 2.1 introduced the TREAT operator to downcast a polymorphic FROM clause element to a subtype so that properties of that subtype can be accessed. Some JPA providers implemented support for an implicit or automatic downcast, but that doesn’t always work as expected, which is why Blaze Persistence only supports explicit downcasts via the TREAT operator.

Unfortunately the TREAT operator implementations of the JPA providers often do the wrong thing. This is due to the JPA spec not being explicit enough about the expected behavior and apparently the TCK not testing enough use cases. Blaze Persistence tries hard to workaround the problems where possible so that you can make use of the TREAT operator without worrying too much. Regardless of what the JPA spec says, Blaze Persistence allows the use of the TREAT operator in any clause, although you should note that some providers have limitations.

9.1. Limitations

Apart from Hibernate, all JPA providers have severe limitations regarding the TREAT operator support. The only way to reliably workaround these limitations is to introduce separate joins for the desired subtypes. Blaze Persistence currently does not implement a transparent translation to the described workaround, but may soon do. Also see #123 for more information.

9.1.1. Hibernate

Hibernate itself does not support the treat operator very well but instead has support for implicit/automatic downcasting which is very powerful. Blaze Persistence emulates the TREAT operator on top of Hibernate by applying type constraints to surrounding predicates or wrapping in CASE statements.

The only problems that might arise are related to Hibernate bugs.

  • multiple joins to associations that use the table per class inheritance strategy will result in ambiguous SQL

  • treat joining relations with a type that uses the table per class inheritance strategy will not work because of ambiguous SQL

  • subquery correlations that use inverse mappings only work as of Hibernate 5

  • map key associations can only be de-referenced as of Hibernate 5.2.8

  • determining the type of a map key in a subquery doesn’t work

  • multiple inner treat joins of an association with a type that uses the single table inheritance strategy, results in type constraint sharing

EclipseLink unfortunately does not support implicit or automatic downcasting and it’s implementation of the TREAT operator is partly broken. Blaze Persistence tries to help as good as possible by throwing exceptions for usages that are known to be broken but mostly renders through the uses of the TREAT operator.

The following limitations and problems are known

  • no support for TREAT in subquery correlations

  • no support for TREAT of join alias in a join path i.e. JOIN TREAT(alias AS Subtype).property is not possible

  • no support for TREAT of join alias in a treat join path i.e. JOIN TREAT(TREAT(alias AS Subtype).property AS Subtype) is not possible

  • the TREAT operator is not supported with the table per class inheritance strategy

  • any use of the TREAT operator will result in global filter being applied breaking left treat join semantics

  • using the TREAT operator on associations of type Map is not supported

  • using the TREAT operator to downcast a join alias from an outer query is not supported

9.1.3. DataNucleus

DataNucleus unfortunately does not support the TREAT operator in any meaningful way. It has limited support for implicit/automatic downcasting in join paths. Blaze Persistence tries to help as good as possible by throwing exceptions for usages that are known to be broken but mostly renders through the uses of the TREAT operator.

The following limitations and problems are known

  • no support for TREAT in subquery correlations

  • no support for TREAT of join alias in a treat join path i.e. JOIN TREAT(TREAT(alias AS Subtype).property AS Subtype) is not possible

  • the TREAT operator is not supported with the joined inheritance strategy

  • any use of the TREAT operator will result in global filter being applied breaking left treat join semantics

  • many more issues

9.2. Subtype property access

Every join alias and property of an alias can be polymorphic and therefore the TREAT operator can be applied to the expression. Since every FROM element in JPA is polymorphic by default, the TREAT operator merely gives access to the subtype properties. When the operator is used in an expression context like in a select item, the expression will return NULL if the treated element is not of the desired subtype. Similarly the use of the operator in a conditional context like in a WHERE predicate, will make the parent predicate evaluate to false if the treated element is not of the desired subtype.

Every use of a TREAT operator has to be followed up by a de-reference i.e. TREAT(alias AS Subtype) is illegal, but TREAT(alias AS Subtype).property is legal.

Consider the following simple model

@Entity
class Animal {
    @Id
    Long id;
    String name;
}

@Entity
class Cat extends Animal {
    String kittyName;
}

@Entity
class Dog extends Animal {
    String doggyName;
}

For simplicity this uses single table inheritance strategy but applies to all strategies. Consider the following test data.

Table 1. Animal

id

dtype

name

kittyName

doggyName

1

Cat

A

A

NULL

2

Dog

B

NULL

B

A query for animals and optionally selecting the kittyName would roughly look like this

CriteriaBuilder<Tuple> cb = cbf.create(em, Tuple.class)
    .from(Animal.class, "a")
    .select("name")
    .select("TREAT(a AS Cat).kittyName");

The resulting query might look like the following, but might differ depending on the actual support of the JPA provider.

SELECT
    a.name,
    CASE WHEN TYPE(a) = Cat THEN a.kittyName END
FROM Animal a

The result list will contain 2 tuples.

Querying for a specific name i.e. using the kittyName in the WHERE clause like

CriteriaBuilder<Tuple> cb = cbf.create(em, Tuple.class)
    .from(Animal.class, "a")
    .select("name")
    .where("TREAT(a AS Cat).kittyName").eq("A");

will actually filter the result set by adding a type restriction predicate to the parent predicate

SELECT
    a.name
FROM Animal a
WHERE TYPE(a) = Cat AND a.kittyName = :param_0

The part about the parent predicate is very important. The JPA spec didn’t test for this which is why most JPA implementations got this wrong. When the TREAT operator is for example used within an OR predicate, Blaze Persistence will handle this correctly.

CriteriaBuilder<Tuple> cb = cbf.create(em, Tuple.class)
    .from(Animal.class, "a")
    .select("name")
    .whereOr()
        .where("TREAT(a AS Cat).kittyName").eq("A")
        .where("a.name").eq("B")
    .endOr();

This will correctly render to

SELECT
    a.name
FROM Animal a
WHERE (TYPE(a) = Cat AND a.kittyName = :param_0)
   OR a.name = :param_1

which will return as expected 2 tuples, the cat and the dog.

If Blaze Persistence were rendering the TREAT operator through to the JPA provider as is, most JPA implementations will behave as if the following query was written

SELECT
    a.name
FROM Animal a
WHERE TYPE(a) = Cat AND (
    a.kittyName = :param_0
 OR a.name = :param_1
)

This will filter out the dog thus resulting in only 1 tuple in the result list which is mostly undesired.

9.3. Subtype relation join

Apart from accessing the properties of subtypes, JPA also specifies the use of the TREAT operator in a join path which allows to restrict the join scope and cast to specific subtypes. A treat join is just like a normal join, except that it additionally uses a predicate like TYPE(alias) = Subtype in the ON clause condition and hints the runtime to restrict the joined tables.

Consider the following simple model

@Entity
class Person {
    @Id
    Long id;
    String name;
    @ManyToOne
    Animal favoritePet;
}

@Entity
class Animal {
    @Id
    Long id;
    String name;
}

@Entity
class Cat extends Animal {
    String kittyName;
}

@Entity
class Dog extends Animal {
    String doggyName;
}

For simplicity this uses single table inheritance strategy but applies to all strategies. Consider the following test data.

Table 2. Person

id

name

favoritePet

1

P1

1

2

P2

NULL

3

P3

2

Table 3. Animal

id

dtype

name

kittyName

doggyName

1

Cat

A

A

NULL

2

Dog

B

NULL

B

A query for cat people would roughly look like this

CriteriaBuilder<Tuple> cb = cbf.create(em, Tuple.class)
    .from(Person.class, "p")
    .select("p.name")
    .select("c.name")
    .innerJoin("TREAT(p.favoritePet AS Cat)", "c");

The resulting query might look like the following, but might differ depending on the actual support of the JPA provider.

SELECT p.name, c.name
FROM Person p
JOIN TREAT(p.favoritePet AS Cat) c

The result list will contain 1 tuple, that is the cat person’s name and the name of the cat.

When doing a left treat join, all people are retained.

CriteriaBuilder<Tuple> cb = cbf.create(em, Tuple.class)
    .from(Person.class, "p")
    .select("p.name")
    .select("c.name")
    .leftJoin("TREAT(p.favoritePet AS Cat)", "c");

The resulting query might look like the following, but again might differ depending on the actual support of the JPA provider.

SELECT p.name, c.name
FROM Person p
LEFT JOIN TREAT(p.favoritePet AS Cat) c

The result list will contain 3 tuples. Note that only the tuple of the cat person P1 will have a non-null name for the favoritePet.

9.4. Querying non-managed types

Currently there is no direct support for this type of querying, but this will change soon. Also see #204

10. Expressions

Blaze Persistence supports almost all expressions that are also valid JPQL expressions and in addition to that also has some extensions. Keywords are case insensitive and optional parenthesis are ignored i.e. not reflected in the expression tree model. Expression optimizations like double invert signum and double negation simplifications can be configured via a configuration property and are enabled by default.

Almost all APIs of Blaze Persistence accept expressions as strings. A few like setWhereExpression(String), setHavingExpression(String), setOnExpression(String) require predicates as strings as they replace the whole predicate. Predicates are a subtype of expressions that produce a boolean value. Until #340 is resolved, it is necessary to wrap predicates in a CASE WHEN expression for producing boolean values for a SELECT clause.

10.1. Identification variables

Identification variables are aliases of FROM clause elements. Since FROM clause aliases and SELECT aliases have to be unique, you can use SELECT aliases just like FROM clause aliases. The only exception to this are ON clauses of FROM clause elements.

10.2. Path expressions

Path expressions use the navigation operator . to navigate to properties of an object. A path expression has the form of identificationVariable.attribute where attribute is the name of an attribute which is part of the type of identificationVariable. Path expressions can also use multiple navigation operators like identificationVariable.association.attribute where association is an object typed attribute. In general, the use of a navigation operator will result in a model aware join of the attributes. In some cases the join will be omitted

  • The attribute is not joinable i.e. it has a basic type like String, Integer

  • The attribute has a managed type and is used in a predicate

  • The path is a single valued id expression and the JPA provider supports that. A single valued id expression is given when

  • The expression has the form identificationVariable.association.id

  • The association is an attribute with an entity type

  • The id is the identifier of the association’s entity type

  • The column for the identifier is physically located in the table that is backing the type of identificationVariable

10.3. Array expressions

The array expression syntax is an extension to the JPQL grammar that allows to refer to a specific element of a collection. Currently this is limited to associations mapped as java.util.Map and indexed java.util.List i.e. lists that use @OrderColumn.

A normal path expression like identificationVariable.collection.name will create an unconditional join for the attribute collection i.e. it refers to all collection elements. An array expression like identificationVariable.collection[:someParam].name on the other hand joins the attribute collection with a ON clause condition KEY(collection) = :someParam if the collection is a java.util.Map and INDEX(collection) = :someParam if it is a java.util.List. So an array expression refers to a single collection element.

Since array expressions by default use the join type LEFT, the expression result is either the value for the specific element or NULL if no collection element for the key or index exists. The array expression syntax can be used anywhere within a path expression. Even multiple uses like this are ok identificationVariable.collection1[:param1].association.collection2[:param2].attribute

10.4. Treat expressions

Every expression in JPQL has a static type that can be determined through the metamodel. Since associations can refer to polymorphic types, it might be necessary to downcast identification variables or path expressions. JPA 2.1 introduced the concept of a TREAT expression to actually downcast to a specific subtype. Blaze Persistence follows the strict rules of JPQL regarding static type resolving and thus requires the use of TREAT when accessing subtype properties. A TREAT expression can be used in any clause and the result of such an expression is either the casted object or NULL if the object is not an instance of the requested type. If TREAT is used as part of a predicate and an object is not of the requested type, the predicate will evaluate to FALSE.

The use of TREAT will not necessarily result in a filter for that subtype.

10.5. Qualified expressions

JPQL has the concept of qualified expressions for collections which is also supported in Blaze Persistence. By default, a join for a collection or an expression using an attribute referring to a collection type, will have the collection value as type. For allowing access to the key of a java.util.Map or the index of an indexed java.util.List, JPQL has a notion of qualification expressions.

10.5.1. VALUE

The VALUE qualification expression is used to refer to the value of a collection explicitly. Since an identification variable by default has this type, the use of VALUE can always be omitted.

10.5.2. KEY

The KEY qualification expression is used to refer to the key of a java.util.Map. If the key type is an entity type, it can be further navigated on.

WARN: Further navigation might not be supported by all JPA providers.

10.5.3. ENTRY

The ENTRY qualification expression is used to construct java.util.Map.Entry instances for an identification variable that refers to a collection of the type java.util.Map.

This qualification expression can only be used in the select clause.

10.5.4. INDEX

The INDEX qualification expression is used to refer to the index of a an indexed java.util.List i.e. mapping that uses @OrderColumn.

10.6. Parameter and Literal expressions

Blaze Persistence only supports named parameters i.e. the :parameterName notation. There are multiple reasons for not supporting positional parameters but the main one being, that positional parameters were never needed by the authors of Blaze Persistence in any of their projects. Values can used in a query either through a parameter expression or by rendering it as literal expression. The syntaxes for literals depend on the data type of the value and roughly align with the syntax of EclipseLink and Hibernate.

Next to the normal literals, Blaze Persistence also has support for a NULL literal. Behind the scenes it renders as NULLIF(1,1).

10.6.1. String literals

Just like in JPQL, the values for literals of string types are enclosed in single quotes. To escape a single quote within the value, a single quote is prefixed.

CriteriaBuilder<Cat> cb = cbf.create(em, Cat.class)
    .whereOr()
        .where("owner.name").like().expression("'Billy'").noEscape()
        .where("name").like().expression("'Billy''s cat'").noEscape()
    .endOr();
SELECT cat
FROM Cat cat
LEFT JOIN cat.owner owner_1
WHERE owner_1.name LIKE 'Billy'
   OR cat.name LIKE 'Billy''s cat'

10.6.2. Numeric literals

By default, an integer literal has the type int or Integer and a decimal literal has the type double or Double. If you need other types, you can use the type suffixes.

  • L for long or Long i.e. 1L

  • F for float or Float i.e. 1.1F

  • D for double or Double i.e. 0D

  • BI for bigint or BigInteger i.e. 1BI

  • BD for decimal or BigDecimal i.e. 0BD

There are no literal suffixes for the types byte and short.

10.6.3. Boolean literals

Boolean literals TRUE and FALSE are case insensitive and can appear as expression directly or as predicate.

10.6.4. Date & Time literals

Date & Time literals work with the JDBC escape syntax just like in JPQL.

Date literal::{d 'yyyy-mm-dd'} Time literal::{t 'hh:mm:ss'} Timestamp literal::{ts 'yyyy-mm-dd hh:mm:ss(.millis)?'} with optional milliseconds

10.6.5. Entity type literals

Whenever you compare against a TYPE() expression, you can use entity type literals. An entity type literal is either the entity name or the fully qualified class name of the entity.

CriteriaBuilder<Cat> cb = cbf.create(em, Cat.class)
    .where("TYPE(owner)").eqExpression("Student");
SELECT cat
FROM Cat cat
LEFT JOIN cat.owner owner_1
WHERE TYPE(owner_1) = Student

10.6.6. Enum literals

An enum literal can be used by writing the fully qualified class name of the enum followed by the enum key.

CriteriaBuilder<Cat> cb = cbf.create(em, Cat.class)
    .where("cat.status").eqExpression("org.mypackage.Status.ALIVE");
SELECT cat
FROM Cat cat
WHERE TYPE(cat.status) = org.mypackage.Status.ALIVE

10.7. Arithmetic expressions

Arithmetic operators (+, -, *, /) are available on numeric types. The type rules follow the JPQL rules which roughly say that if any operand in an arithmetic expression is of type …​ * Double, then the result is of type Double * Float, then the result is of type Float * BigDecimal, then the result is of type BigDecimal * BigInteger, then the result is of type BigInteger * Long, then the result is of type Long

In all other cases, the result is of the type Integer. The only exception to all of these rules is the division operator / for which the result type is undefined.

The operators can’t be used for date arithmetic. Instead the date diff functions have to be used.

10.8. Function expressions

Blaze Persistence decided to only allow the standard JPQL and some extension functions to be used directly with the function call syntax FUNCTION_NAME ( (args)* ). Non-standard functions have to be used via the FUNCTION ( function_name (, args)* ) syntax that got introduced in JPA 2.1.

10.8.1. String functions

Functions that return a result of type string.

CONCAT ( string1, string2 (, args)* )

Concatenates the arguments to one string. Contrary to JPQL, this function allows varargs.

CriteriaBuilder<String> cb = cbf.create(em, String.class)
    .from(Cat.class, "cat")
    .select("CONCAT(cat.name, ' the cat')");
SELECT CONCAT(cat.name, ' the cat')
FROM Cat cat
SUBSTRING ( string, start (, length)? )

Returns the subsequence of the first argument beginning at start which is 1-based. The length is optional.

CriteriaBuilder<String> cb = cbf.create(em, String.class)
    .from(Cat.class, "cat")
    .select("SUBSTRING(cat.name, 1, 2)");
SELECT SUBSTRING(cat.name, 1, 2)
FROM Cat cat
TRIM ( ( (LEADING | TRAILING | BOTH)? trimChar? FROM)? string )

Trims a character from the string. By default the whitespace character is trimmed from BOTH sides.

CriteriaBuilder<String> cb = cbf.create(em, String.class)
    .from(Cat.class, "cat")
    .select("TRIM(BOTH ' ' FROM cat.name)");
SELECT TRIM(BOTH ' ' FROM cat.name)
FROM Cat cat
LOWER ( string )

Returns the string in all lower case form.

CriteriaBuilder<String> cb = cbf.create(em, String.class)
    .from(Cat.class, "cat")
    .select("LOWER(cat.name)");
SELECT LOWER(cat.name)
FROM Cat cat
UPPER ( string )

Returns the string in all upper case form.

CriteriaBuilder<String> cb = cbf.create(em, String.class)
    .from(Cat.class, "cat")
    .select("UPPER(cat.name)");
SELECT UPPER(cat.name)
FROM Cat cat

10.8.2. Numeric functions

Functions that return a numeric result.

LENGTH ( string )

Returns the length of the string.

CriteriaBuilder<Integer> cb = cbf.create(em, Integer.class)
    .from(Cat.class, "cat")
    .select("LENGTH(cat.name)");
SELECT LENGTH(cat.name)
FROM Cat cat
LOCATE ( string1, string2, start? )

Returns the first position of string2 within string1 from left to right, starting at start. By default starts at the beginning.

CriteriaBuilder<Integer> cb = cbf.create(em, Integer.class)
    .from(Cat.class, "cat")
    .select("LOCATE(cat.name, ' ')");
SELECT LOCATE(cat.name, ' ')
FROM Cat cat
ABS ( numeric )

Returns the absolute value of the numeric value.

CriteriaBuilder<Integer> cb = cbf.create(em, Integer.class)
    .from(Cat.class, "cat")
    .select("ABS(cat.age / 3)");
SELECT ABS(cat.age / 3)
FROM Cat cat
SQRT ( numeric )

Returns the square root of the numeric value.

CriteriaBuilder<Double> cb = cbf.create(em, Double.class)
    .from(Cat.class, "cat")
    .select("SQRT(cat.age)");
SELECT SQRT(cat.age)
FROM Cat cat
MOD ( numeric1, numeric2 )

Returns the remainder for the division numeric1 / numeric2.

CriteriaBuilder<Integer> cb = cbf.create(em, Integer.class)
    .from(Cat.class, "cat")
    .select("MOD(cat.age, 3)");
SELECT MOD(cat.age, 3)
FROM Cat cat

The functions SIZE and INDEX also return numeric values but are described in [Collection functions]

10.8.3. Date & Time functions

Functions that return a result with a date or time type.

CURRENT_DATE

Returns the databases current date.

CriteriaBuilder<java.sql.Date> cb = cbf.create(em, java.sql.Date.class)
    .from(Cat.class, "cat")
    .select("CURRENT_DATE");
SELECT CURRENT_DATE
FROM Cat cat
CURRENT_TIME

Returns the databases current time.

CriteriaBuilder<java.sql.Time> cb = cbf.create(em, java.sql.Time.class)
    .from(Cat.class, "cat")
    .select("CURRENT_TIME");
SELECT CURRENT_TIME
FROM Cat cat
CURRENT_TIMESTAMP

Returns the databases current timestamp.

CriteriaBuilder<java.sql.Timestamp> cb = cbf.create(em, java.sql.Timestamp.class)
    .from(Cat.class, "cat")
    .select("CURRENT_TIMESTAMP");
SELECT CURRENT_TIME
FROM Cat cat

10.8.4. Collection functions

Functions that operate on collection mappings.

INDEX ( collection_join_alias )

Returns the index of a collection element. The collection must be a java.util.List and have a @OrderColumn.

CriteriaBuilder<Integer> cb = cbf.create(em, Integer.class)
    .from(Cat.class, "cat")
    .select("INDEX(cat.favouriteKittens)");
SELECT INDEX(favouriteKittens_1)
FROM Cat cat
LEFT JOIN cat.favouriteKittens favouriteKittens_1
KEY ( collection_join_alias )

Returns the key of a collection element. The collection must be a java.util.Map.

CriteriaBuilder<AddressType> cb = cbf.create(em, AddressType.class)
    .from(Person.class, "p")
    .select("KEY(p.addresses)");
SELECT KEY(addresses_1)
FROM Person p
LEFT JOIN p.addresses addresses_1
SIZE ( collection_path )

Returns the size of a collection.

CriteriaBuilder<Long> cb = cbf.create(em, Long.class)
    .from(Cat.class, "cat")
    .select("SIZE(cat.favouriteKittens)");
SELECT COUNT(KEY(favouriteKittens_1))
FROM Cat cat
LEFT JOIN cat.favouriteKittens favouriteKittens_1
GROUP BY cat.id
The implementation for SIZE is highly optimized and tries to avoid subqueries to improve performance. It does not delegate to the SIZE implementation of the JPA provider.

For more information go to the [SIZE function] chapter.

10.8.5. Aggregate functions

Blaze Persistence supports all aggregates as defined by JPQL and some non-standard aggregates. On top of that, it also has support for defining custom aggregate functions. For further information on custom aggregates take a look at the [Custom JPQL functions] chapter.

COUNT ( DISTINCT? arg )

Returns the number of elements that are not null as Long.

CriteriaBuilder<Long> cb = cbf.create(em, Long.class)
    .from(Cat.class, "cat")
    .leftJoin("cat.favouriteKittens", "fav")
    .select("COUNT(KEY(fav))");
SELECT COUNT(KEY(fav))
FROM Cat cat
LEFT JOIN cat.favouriteKittens fav
Blaze Persistence has a custom implementation for COUNT(DISTINCT) to support counting tuples even when the JPA provider and/or DBMS do not support it natively.
COUNT ( * )

Returns the number of elements as Long.

WARN: This is a non-standard function that is not specified by JPQL but supported by all major JPA providers.

CriteriaBuilder<Long> cb = cbf.create(em, Long.class)
    .from(Cat.class, "cat")
    .leftJoin("cat.favouriteKittens", "fav")
    .select("COUNT(*)");
SELECT COUNT(*)
FROM Cat cat
LEFT JOIN cat.favouriteKittens fav
AVG ( DISTINCT? numeric )

Returns the average numeric value as Double.

CriteriaBuilder<Double> cb = cbf.create(em, Double.class)
    .from(Cat.class, "cat")
    .select("AVG(cat.age)");
SELECT AVG(cat.age)
FROM Cat cat
MAX ( arg )

Returns the maximum element.

CriteriaBuilder<Double> cb = cbf.create(em, Double.class)
    .from(Cat.class, "cat")
    .select("MAX(cat.age)");
SELECT MAX(cat.age)
FROM Cat cat
MIN ( arg )

Returns the minimum element.

CriteriaBuilder<Double> cb = cbf.create(em, Double.class)
    .from(Cat.class, "cat")
    .select("MIN(cat.age)");
SELECT MIN(cat.age)
FROM Cat cat
SUM ( numeric )

Returns the sum of all elements. Integral argument types have the result type Long, except for BigInteger which has the result type BigInteger. Decimal argument types have the result type Double, except for BigDecimal which has the result type BigDecimal.

CriteriaBuilder<Long> cb = cbf.create(em, Long.class)
    .from(Cat.class, "cat")
    .select("SUM(cat.age)");
SELECT SUM(cat.age)
FROM Cat cat
FUNCTION ( 'GROUP_CONCAT' (, 'DISTINCT' )? , string (, 'SEPARATOR', separatorString)? (, 'ORDER BY', ( orderByExpr, ( 'ASC' | 'DESC' ) )+ ) )

Concatenates elements to a single string connected with the separatorString in the requested order.

WARN: This is a non-standard function that might not be supported on all DBMS. See JPQL functions for further information.

CriteriaBuilder<String> cb = cbf.create(em, String.class)
    .from(Cat.class, "cat")
    .select("FUNCTION('GROUP_CONCAT', cat.name, 'SEPARATOR', ' - ', 'ORDER BY', cat.name, 'ASC')");
SELECT FUNCTION('GROUP_CONCAT', cat.name, 'SEPARATOR', ' - ', 'ORDER BY', cat.name, 'ASC')
FROM Cat cat

10.8.6. Cast and treat functions

The cast functions offered by Blaze Persistence allow to do an SQL cast. The following data types are supported

  • Boolean - CAST_BOOLEAN

  • Byte - CAST_BYTE

  • Short - CAST_SHORT

  • Integer - CAST_INTEGER

  • Long - CAST_LONG

  • Float - CAST_FLOAT

  • Double - CAST_DOUBLE

  • Character - CAST_CHARACTER

  • String - CAST_STRING

  • BigInteger - CAST_BIGINTEGER

  • BigDecimal - CAST_BIGDECIMAL

  • java.sql.Time - CAST_TIME

  • java.sql.Date - CAST_DATE

  • java.sql.Timestamp - CAST_TIMESTAMP

  • java.util.Calendar - CAST_CALENDAR

The SQL type for a java type can be customized in the DBMS dialect globally. If you need to cast to other types, you need to create a custom function.

Although JPQL is strictly typed, it might not always be possible to determine an appropriate type for an expression. For such cases Blaze Persistence created various TREAT_ functions that allow to give a subexpression an explicit type within the JPQL expression. Normally, users shouldn’t get in touch with this directly. It is currently used internally to implement the VALUES clause and is only mentioned for completeness.

10.8.7. Function function

As of JPA 2.1 it is possible to invoke non-standard functions via the FUNCTION ( function_name (, args)* ). Blaze Persistence not only has support for that, but prefers this syntax for non-standard functions over a proprietary syntax. The reason for that is mainly that the JPQL rendered by Blaze Persistence stays directly executable, even if proprietary functions are used.

By default, all non-standard functions of the JPA provider are imported. This means that you can make use of functions provided by the JPA provider with the FUNCTION ( function_name (, args)* ) syntax and it will get rendered into the JPA provider specific way of invoking such functions automatically.

A list of functions provided by Blaze Persistence and information on how to implement a custom function can be found in the [JPQL functions] chapter.

10.9. Subquery expressions

Since subqueries aren’t supported to be written as a whole but only through a builder API, Blaze Persistence offers a special API to construct complex expressions that contain subqueries. The API was explained for predicates and select expressions already. The general idea is that you introduce aliases for subqueries in a complex expression that later get replaced with the actual subquery in the expression tree.

Within subqueries, Blaze Persistence supports a function called OUTER() which can be used to refer to attributes of the parent query’s root. By using OUTER you can avoid introducing the query root alias of the outer query into the subquery directly.

For further information on OUTER take a look into the JPQL functions chapter.

10.10. Nullif expressions

NULLIF ( arg1, arg2 )

Returns NULL if arg1 and arg2 are equal and the value of arg1 if they are not.

CriteriaBuilder<String> cb = cbf.create(em, String.class)
    .from(Cat.class, "cat")
    .select("NULLIF(cat.name, cat.owner.name)");
SELECT NULLIF(cat.name, owner_1.name)
FROM Cat cat
LEFT JOIN cat.owner owner_1

10.11. Coalesce expressions

COALESCE ( arg1, arg2 (, args)* )

Returns the first non-NULL argument or NULL if all arguments are NULL.

CriteriaBuilder<String> cb = cbf.create(em, String.class)
    .from(Cat.class, "cat")
    .select("COALESCE(cat.name, cat.owner.name, 'default')");
SELECT COALESCE(cat.name, owner_1.name, 'default')
FROM Cat cat
LEFT JOIN cat.owner owner_1

10.12. Case expressions

Although Blaze Persistence already supports building CASE WHEN expressions via a builder API, it also supports an expression form. The API was explained for predicates and select expressions already.

10.12.1. Simple case expressions

CASE operand (WHEN valueN THEN resultN)+ ELSE resultOther END

Tests if the operand equals one of valueN and if so, returns the respective resultN, otherwise returns resultOther.

CriteriaBuilder<String> cb = cbf.create(em, String.class)
    .from(Cat.class, "cat")
    .select("CASE cat.age WHEN 1 THEN 'Baby' ELSE 'Other' END");
SELECT CASE cat.age WHEN 1 THEN 'Baby' ELSE 'Other' END
FROM Cat cat

10.12.2. Searched case expressions

CASE (WHEN conditionN THEN resultN)+ ELSE resultOther END

Tests if any conditionN evaluates to true and if so, returns the respective resultN, otherwise returns resultOther.

CriteriaBuilder<String> cb = cbf.create(em, String.class)
    .from(Cat.class, "cat")
    .select("CASE WHEN cat.age < 2 THEN 'Baby' ELSE 'Other' END");
SELECT CASE WHEN cat.age < 2 THEN 'Baby' ELSE 'Other' END
FROM Cat cat

10.13. Predicate expressions

Blaze Persistence supports constructing predicates via a builder API as has been shown in the [Predicate Builder] chapter, but sometimes it is necessary to define predicates as strings. It is necessary for CASE WHEN expressions or when wanting to replace a whole predicate via e.g. setWhereExpression(String).

Predicates can be connected with the logical operators AND and OR and form a compound predicate. Predicates can be grouped by using parenthesis and can be prefixed with the unary operator NOT for negating the predicate. All predicates except for null-aware predicates like e.g. IS NULL that compare against NULL, will result in UNKNOWN which is intuitively equal to FALSE.

10.14. Relational comparison predicate

expression1 ( = | <> | > | >= | < | <= | != ) ( expression2 | ( ( ALL | ANY | SOME ) subquery_alias ) )

Compares same typed operands with one of the operators =, <>, >, >=, <, <=. Blaze Persistence also defines the != as synonym for the <> operator. In addition to normal comparison, relational predicates can also have a quantifier to do comparisons against ALL or ANY/SOME elements of a set.

CriteriaBuilder<Cat> cb = cbf.create(em, Cat.class)
    .from(Cat.class, "cat")
    .setWhereExpressionSubqueries("cat.age < 2 AND LENGTH(cat.name) >= ALL catNameLengths")
        .with("catNameLengths")
            .from(Cat.class, "subCat")
            .select("LENGTH(subCat.name)")
        .end()
    .end();
SELECT cat
FROM Cat cat
WHERE cat.age < 2
  AND LENGTH(cat.name) >= ALL (
      SELECT LENGTH(subCat.name)
      FROM Cat subCat
  )

10.15. Nullness predicate

expression IS NOT? NULL

Evaluates whether a value is NULL.

CriteriaBuilder<Cat> cb = cbf.create(em, Cat.class)
    .from(Cat.class, "cat")
    .setWhereExpression("cat.owner IS NOT NULL");
SELECT cat
FROM Cat cat
WHERE cat.owner IS NOT NULL

10.16. Like predicate

string NOT? LIKE pattern (ESCAPE escape_character)?

Tests if string matches pattern. The escape_character can be used to escape usages of the single char wildcard _ and multi-char wildcard % characters in pattern.

CriteriaBuilder<Cat> cb = cbf.create(em, Cat.class)
    .from(Cat.class, "cat")
    .setWhereExpression("cat.name LIKE 'Mr.%'");
SELECT cat
FROM Cat cat
WHERE cat.name LIKE 'Mr.%'

10.17. Between predicate

expression1 NOT? BETWEEN expression2 AND expression3

Between is a shorthand syntax for the tests expression1 >= expression2 AND expression1 <= expression3.

CriteriaBuilder<Cat> cb = cbf.create(em, Cat.class)
    .from(Cat.class, "cat")
    .setWhereExpression("cat.age BETWEEN 1 AND 2");
SELECT cat
FROM Cat cat
WHERE cat.age BETWEEN 1 AND 2

10.18. In predicate

expression1 NOT? IN ( subquery_alias | collection_parameter | ( '(' item1 (, itemN)* ')' ) )

The IN predicate checks if expression1 is contained in any of the values on the right hand side i.e. item1..itemN. Items can be parameters or literals. If just one item is given, the IN predicate is rewritten to an EQ predicate and thus allows the single item to be any expression.

When the collection value for collection_parameter is bound on the query builder of Blaze Persistence, empty collections will work as expected. Behind the scenes the IN predicate is replace by a TRUE or FALSE predicate.

The subquery_alias is replaced with the subquery defined via the builder API as explained in the predicates chapter and the builder section for the IN predicate.

CriteriaBuilder<Cat> cb = cbf.create(em, Cat.class)
    .from(Cat.class, "cat")
    .setWhereExpression("cat.age IN (1L, 2L, 3L, :param)");
SELECT cat
FROM Cat cat
WHERE cat.age IN (1L, 2L, 3L, :param)
Some JPA providers support a row-value constructor syntax which is not supported by Blaze Persistence. Consider rewriting queries that use that syntax to the EXISTS equivalent.

10.19. Exists predicate

NOT? EXISTS subquery_alias

The EXISTS predicate checks if the subquery for subquery_alias has rows.

CriteriaBuilder<Cat> cb = cbf.create(em, Cat.class)
    .from(Cat.class, "cat")
    .setWhereExpressionSubqueries("EXISTS subquery_alias")
        .with("subquery_alias")
            .from(Cat.class, "subCat")
            .where("cat").notEqExpression("subCat")
        .end()
    .end();
SELECT cat
FROM Cat cat
WHERE EXISTS(
    SELECT 1
    FROM Cat subCat
    WHERE cat <> subCat
)

10.20. Empty predicate

collection_path IS NOT? EMPTY

The IS EMPTY predicate checks if the collection for an element as specified by collection_path is empty i.e. contains no elements.

CriteriaBuilder<Cat> cb = cbf.create(em, Cat.class)
    .from(Cat.class, "cat")
    .setWhereExpression("cat.kittens IS EMPTY");
SELECT cat
FROM Cat cat
WHERE cat.kittens IS EMPTY

10.21. Member-of predicate

expression NOT? MEMBER OF? collection_path

The MEMBER OF predicate checks if expression is an element of the collection as specified by collection_path.

CriteriaBuilder<Cat> cb = cbf.create(em, Cat.class)
    .from(Cat.class, "cat")
    .setWhereExpression("cat MEMBER OF cat.kittens");
SELECT cat
FROM Cat cat
WHERE cat MEMBER OF cat.kittens

11. Query API

The central element to the construction of criteria or query builders is the CriteriaBuilderFactory. The factory provides methods for constructing [DML statements], left nested set operations and CriteriaBuilder instances for SELECT statements.

The top level query builders allow access to the query string and also to construct JPA javax.persistence.Query or javax.persistence.TypedQuery instances through the interfaces

String queryString = cbf.create(em, Cat.class, "cat")
    .getQueryString();
TypedQuery<Cat> query = em.createQuery(queryString, Cat.class);

The possibility to access the query string is a convenience for debugging or monitoring, but queries should always be constructed via the respective query construction methods. If advanced features like CTEs, Set-Operations or others are used, the query string returned really is just a logical representation of the query structure, so don’t rely on the query string being compilable through EntityManager#createQuery().

The constructed JPA query instances for queries that use some of the advanced features currently do not support query hints or unwrapping.
TypedQuery<Cat> query = cbf.create(em, Cat.class, "cat")
    .getTypedQuery();

Queries should always be created that way and also can be reused for the transaction just like any other query.

Blaze Persistence also offers convenience methods on the top level query builder interfaces to execute the queries

List<Cat> query = cbf.create(em, Cat.class, "cat")
    .getResultList();

11.1. Parameter binding

Apart from support for binding parameters on the constructed JPA query, Blaze Persistence also allows to bind parameters on the query builder itself. All query builders(including subquery and other builders) support setting parameters through the same setParameter() API that is offered by the JPA query API. In addition to that, it is also possible to inspect the parameters and the bound values while building through getParameters().

List<Cat> query = cbf.create(em, Cat.class, "cat")
    .where("name").eqExpression(":nameParam")
    .setParameter("nameParam", "Billy")
    .getResultList();

11.2. Count query

A CriteriaBuilder allows to render and create a count query variant via getCountQuery() which can be used to count the results of a query. This count query is rather simple. Most of the time, it’s just the original query, except that it has just COUNT(*) in the SELECT clause and drops the ORDER BY clause. If a GROUP BY clause is involved, the count query will count the number of distinct groups instead.

Invoking getCountQuery() on a PaginatedCriteriaBuilder will return the count query used for the paginated query which is based on it’s identifier expressions.

On top of that, CriteriaBuilder also offers a getQueryRootCountQuery() which will count the number of query roots similar to what the count query of a PaginatedCriteriaBuilder does. The benefit of this count query is that it will omit joins that are only relevant for the SELECT and ORDER BY clauses.

CriteriaBuilder<Cat> criteriaBuilder = cbf.create(em, Cat.class, "cat")
    .select("cat.id")
    .select("kittens.id")
    .where("name").eq("Billy");

When using getCountQuery(), this will count the result set size and produce the following JPQL

SELECT COUNT(*)
FROM Cat cat
LEFT JOIN cat.kittens
WHERE cat.name = :param_0

When using getQueryRootCountQuery(), this will count the number of cats instead, which allows to omit joins and will produce the following JPQL

SELECT COUNT(*)
FROM Cat cat
WHERE cat.name = :param_0

Note that the use of the HAVING clause is currently unsupported when used with count queries. Also see #616

11.3. Query properties

As mentioned in the configuration chapter, a query builder can be further configured via the setProperty(String, String) method. This allows for disabling optimizations when encountering bugs or fine tuning on a case by case basis.

If you encounter, that you make use of a configuration very often, you should consider configuring the property globally via the CriteriaBuilderConfiguration and only switch to a different value when needed.

11.4. Query result caching

Query result caching can be enabled by invoking the setCacheable(boolean) method on a query builder.

Note that additional configuration might be required for the caching to work properly. For details, refer to the documentation of your JPA provider.

11.5. Limitations

Although we try to adopt or at least allow the use of JPA provider extension there are some limitations to the query API that are known and currently not addressed.

  • No support for iterative result processing i.e. scrolling yet. See #254

  • No support for passing query hints

  • No way for query caching for static queries that use advanced features. This is going to be addressed as part of #252

12. Pagination

Pagination is often used to make large data sets consumable. It requires an ordered set of elements/rows to be able to deterministically split the data into pages. Imagine the following ordered data set

diag f483c03175a48593dea1cac3c31c7f79

If we split it up into pages of the size of 5 elements we get 6 pages and the last one only containing 1 element

diag 4c8b83ab63944d674ba8c39498440fe5

Blaze Persistence provides two ways to do pagination.

Conventional pagination in JPA only works on the main query which is also possible with Blaze Persistence.

List<Cat> secondCat = cbf.create(em, Cat.class)
    .orderByAsc("id")
    .setFirstResult(1)
    .setMaxResults(1)
    .getResultList();
SELECT cat
FROM Cat cat
ORDER BY cat.id ASC NULLS LAST
--LIMIT 1 OFFSET 1

In addition to that, offset pagination for subqueries is also possible.

List<Cat> secondCat = cbf.create(em, Cat.class)
    .fetch("kittens")
    .where("id").in()
        .from(Cat.class, "subCat")
        .select("subCat.id")
        .orderByAsc("id")
        .setFirstResult(1)
        .setMaxResults(1)
    .end()
    .getResultList();
SELECT cat
FROM Cat cat
LEFT JOIN FETCH cat.kittens kittens_1
WHERE cat.id IN LIMIT((                 (1)
    SELECT subCat.id
    FROM Cat cat
    ORDER BY cat.id ASC NULLS LAST
),1 ,1) --LIMIT 1 OFFSET 1
1 Uses the LIMIT function to apply a LIMIT/OFFSET clause on the subquery

The extended pagination support comes via the criteria builder’s page() methods which come in three flavours:

page(int firstResult, int maxResults)

Performs offset pagination by skipping firstResult elements and from there on, show maxResults elements.

page(KeysetPage keysetPage, int firstResult, int maxResults)

Performs keyset pagination if possible and falls back to offset pagination otherwise.

pageAndNavigate(Object entityId, int maxResults)

Navigates to the page containing the entity with the given entityId. Falls back to the first page if no entity for the id exists.

12.1. Under the hood

In Blaze Persistence we have followed a more involved approach for implementing pagination than plainly using JPA standard methods like javax.persistence.Query.setMaxResults() or javax.persistence.Query.setFirstResult() to steer the result set dimensions. This is due to deficiencies in some JPA providers when it comes to handling paginated queries containing join fetches for collections.

By default, when using fetch joins for collections with Hibernate, all results are fetched instead of only the selected page.

The approach used in Blaze Persistence consists of up to three queries executed consecutively:

  1. The count query is used to fetch the total element count which is needed to populate com.blazebit.persistence.PagedList.getTotalSize() and com.blazebit.persistence.PagedList.getTotalPages(). If this query returns 0, no further queries are executed.

  2. The ID query is used to fetch the entity ids that are contained in the target page. In this step, the previously mentioned javax.persistence.Query.setMaxResults() and javax.persistence.Query.setFirstResult() are used to select the target ID set. Only selecting the IDs allows to omit all fetch joins, especially collection joins that might trigger inefficient jpa provider strategies. The ID query is omitted if no collection fetch joins are done, because in that case JPA providers tend to do the right thing when paginating directly.

  3. Finally, the object query is used to fetch the entities as described by the original query specified by the user. This query uses an IN predicate for the ID set retrieved in the previous step to restrict the fetched entities to the target page.

In a future version it might be possible to combine queries or disable the count query. For more information on that see #248, #249 and #255
You can inspect the query strings by using getPageCountQueryString(), getPageIdQueryString() and getQueryString()

12.2. Offset pagination

As already laid out in the introduction, pagination works on an ordered set of elements/rows. Offset pagination basically looks at the ordered set from left to right and counts elements until the count reaches firstResult. From that point on elements are collected until maxResults of elements have been collected or no more elements are available.

This basically means that the OFFSET i.e. firstResult part forces a DBMS to actually determine an element/row is visible for a transaction and then ignore/skip it. The bigger the firstResult value, the more resources the DBMS has to waste for skipping elements/rows. This essentially means that when employing offset pagination, accessing the latter pages will become more and more expensive. In order for this approach to be actually usable with larger data sets, a DBMS index that can be used for the ordering is required to avoid constantly loading and sorting data. In addition to that, the DBMS should have enough RAM to keep the index fully in-memory to avoid costly disk fetches.

Although offset pagination works in every case, it should be avoided if possible because of the performance implications. As you will see in the keyset pagination part there is a more efficient approach to pagination that almost uses the same API.

The following example illustrates the usage and what happens behind the scenes

PagedList<Cat> page2 = cbf.create(em, Cat.class)
    .fetch("kittens")
    .orderByAsc("id") // unique ordering is required for pagination
    .page(5, 5)
    .getResultList();

Executes the following queries

SELECT COUNT(*)
FROM Cat cat

Note that the ID query is necessary because of the join fetched collection kittens

SELECT cat.id
FROM Cat cat
ORDER BY cat.id ASC NULLS LAST
--LIMIT 1 OFFSET 1
SELECT cat
FROM Cat cat
LEFT JOIN FETCH cat.kittens kittens_1
WHERE cat.id IN :idParams
ORDER BY cat.id ASC NULLS LAST

12.3. Keyset pagination

Keyset pagination is a way to efficiently paginate or scroll through a large data set by querying for elements that come before or after a reference point. The idea of a keyset is, that every tuple can be uniquely identified by that keyset. So a keyset essentially is a reference point of a tuple in a data set ordered by keysets. Keyset pagination in contrast to offset pagination makes efficient use of the ordering property of the data set. By remembering the highest and lowest keysets of a page, it is possible to query the previous and next pages efficiently.

A keyset in terms of query results consists of the values of the ORDER BY expressions of a tuple. In order to satisfy the uniqueness constraint, it is generally a good idea to use an entity’s id as last expression in the ORDER BY clause.

Currently entity ids are the only possible expressions that satisfies the uniqueness constraint. At some later point, unique expressions might be allowed as well.

Keyset pagination just like offset pagination requires index support on the DBMS side to work efficiently. A range-scan enabled index like provided by a b-tree index is required for keyset pagination to work best. In contrast to offset pagination, an index does not have to be traversed like a list in order to ignore/skip a certain amount of elements/rows. Instead, a DBMS can make use of the structure of the index and traverse it in O(log N) as compared to O(N) to get to the firstResult. This characteristic makes keyset pagination especially useful for accessing latter pages.

Don’t allow too many different sort combinations as every combination requires a custom index to work efficiently.

One of the obvious requirements for keyset pagination to work, is the need for a reference point i.e. a keyset from which point on the next or previous elements should be queried.

The API in Blaze Persistence tries to allow making use of keyset pagination in a transparent and easy manner without compromises.

// In the beginning we don't have a keyset page
KeysetPage oldPage = null;
PagedList<Cat> page2 = cbf.create(em, Cat.class)
    .orderByAsc("birthday")
    .orderByAsc("id") // unique ordering is required for pagination
    .page(oldPage, 5, 5) (1)
    .getResultList();

// Query the next page with the keyset page of page2
PagedList<Cat> page3 = cbf.create(em, Cat.class)
    .orderByAsc("birthday")
    .orderByAsc("id") // unique ordering is required for pagination
    .page(page2.getKeysetPage(), 10, 5) (2)
    .getResultList();

// Query the previous page with the keyset page of page2
PagedList<Cat> page1 = cbf.create(em, Cat.class)
    .orderByAsc("birthday")
    .orderByAsc("id") // unique ordering is required for pagination
    .page(page2.getKeysetPage(), 0, 5) (3)
    .getResultList();
1 The oldPage in this case is null, so internally it falls back to offset pagination
2 When querying the next page of page2, it can use the upper bound of the keyset page
3 When querying the previous page of page2, it can use the lower bound of the keyset page

Since we are not fetching any collections, the ID query is avoided. For brevity, we skip the count query. So let’s look at the object queries generated

SELECT cat, cat.id (1)
FROM Cat cat
ORDER BY cat.birthday ASC NULLS LAST, cat.id ASC NULLS LAST
--LIMIT 5 OFFSET 5
1 The expression cat.id is for constructing the keyset and contains all expressions of the ORDER BY clause

As you can see, nothing fancy, except for the additional select that is used for extracting the keyset.

SELECT cat, cat.id
FROM Cat cat
WHERE cat.birthday > :_keysetParameter_0 OR (
    cat.birthday = :_keysetParameter_0 AND
    cat.id > :_keysetParameter_1
)
ORDER BY cat.birthday ASC NULLS LAST, cat.id ASC NULLS LAST
--LIMIT 5

This time the query made efficient use of the keyset by filtering out elements/rows that come before the reference point

SELECT cat, cat.id
FROM Cat cat
WHERE cat.birthday < :_keysetParameter_0 OR (
    cat.birthday = :_keysetParameter_0 AND
    cat.id < :_keysetParameter_1
)
ORDER BY cat.birthday DESC NULLS FIRST, cat.id DESC NULLS FIRST
--LIMIT 5

Before the query filtered out elements/rows that came before the reference point, this time it does the opposite. It filters out elements/rows coming after the reference point. Another interesting thing to notice, the ordering was reversed too. This has the effect that the DBMS can traverse the index backwards and essentially is how keyset pagination works. The ordering is reversed again in-memory, so you don’t notice anything of these details.

Note that in the following situations, the implementation automatically falls back to offset pagination

  • The keyset is invalid i.e. it is null

  • The ordering of the query changed

  • The page to navigate to is arbitrary i.e. not the next or previous page of a keysetPage

To be able to make use of keyset pagination either via the PaginatedCriteriaBuilder API or the manual keyset filter API, the KeysetPage or the respective Keyset elements have to be preserved across page requests. Applications that can retain state between requests(i.e. via a session) can just preserve the KeysetPage object itself. Applications that try to avoid server side state have to serialize and deserialize the state somehow.

Since the keyset state is available through getter methods, it shouldn’t be too hard to do the serialization and deserialization. When implementing a custom Keyset, the equals() and hashCode() contracts have to make use of just the tuple. A custom KeysetPage implementation has to provide access to the lowest and highest keysets, as well as the firstResult and maxResults values used for querying that page.

Beware that keyset pagination isn’t perfect. If entries can be prepended relative to the current keyset/reference point, it might happen that the page number calculation becomes wrong over time. Most of the time this is negligible as it kind of gives the illusion that the user works on a snapshot of the data.

12.4. Navigate to entity page

The navigation to the page on which an entity with a specific id is involves finding out the position of the entity. Blaze Persistence offers a custom function named PAGE_POSITION which determines the absolute position of an entity in an ordered set.

Cat knownCat = //...
PagedList<Cat> page3 = cbf.create(em, Cat.class)
    .orderByAsc("birthday")
    .orderByAsc("id") // unique ordering is required for pagination
    .pageAndNavigate(knownCat.getId(), 3)
    .getResultList();
SELECT COUNT(*), FUNCTION('PAGE_POSITION',(
    SELECT _page_position_cat.id
    FROM Cat _page_position_cat
    GROUP BY _page_position_cat.id, _page_position_cat.birthday
    ORDER BY _page_position_cat.birthday DESC NULLS FIRST, _page_position_cat.id DESC NULLS FIRST
), :_entityPagePositionParameter)
FROM Cat cat

The count query contains the page position determination logic. It essentially passes an ID query as subquery to the PAGE_POSITION function. The concrete SQL implementation of that function depends on the DBMS, but they all follow the same main idea. Wrap the ID query and count the row numbers. In another wrapper around that, filter for the row with the matching id and return the row number as position. The element/row number of the first element on that page is calculated and used as firstResult. Apart from this speciality, the rest of the query is just like a normal offset pagination query.

12.5. Custom identifier expressions

By default, a query will be paginated by the query root’s id or group by keys, but that might not always be desirable. If the query should rather be paginated based on the identifier of a uniqueness preserving association or unique key rather than primary key or group by keys, the pageBy() variants that accept identifier expressions can be used.

PagedList<Cat> page = cbf.create(em, Cat.class)
    .orderByAsc("birthday")
    .orderByAsc("someOneToOne.id")
    .pageBy(0, 1, "someOneToOne.id")
    .getResultList();

This will paginate based on the identifier of the one-to-one association instead, which is considered uniqueness preserving.

12.6. Paginate aggregate queries

Apart from paginating object graphs it is also possible to paginate aggregate results via this API. The use of groupBy() or an aggregate function will make it necessary to render a GROUP BY clause.

It doesn’t matter if grouping is done explicitly or implicitly, pagination will always be done based on the GROUP BY clause if available, unless a custom identifier expression is specified. This means that the count query, will count the number distinct groups. The id query will select the distinct groups and the object query will finally do the aggregation based on a filter on the groups.

PagedList<Cat> page = cbf.create(em, Cat.class)
    .select("cat.name")
    .select("SUM(kittens.age)")
    .orderByAsc("name")
    .page(0, 1)
    .getResultList();

Note that we didn’t specify a groupBy("c.name") because it can be implicitly determined. Also note that using just the name in the orderByAsc is not a violation of the uniqueness properties. This is because through implicit group by collection, we know that name is going to be part of the GROUP BY clause and when a tuple of expressions is contained in the group by, it is considered unique.

SELECT COUNT(DISTINCT cat.name)
FROM Cat cat

Since we don’t fetch collections, there is no need for an id query.

SELECT cat.name, SUM(kittens_1.age)
FROM Cat cat
LEFT JOIN cat.kittens kittens_1
GROUP BY cat.name
ORDER BY cat.name
--LIMIT 1

12.7. Limitations

Since the PaginatedCriteriaBuilder API pagination produces inherently distinct results the use of distinct() on a PaginatedCriteriaBuilder is disallowed and will result in an exception. Also note that there is currently no support for the HAVING clause along with a PaginatedCriteriaBuilder. Also see #616

If these limitations are not ok for your use case, you will have to implement a custom pagination strategy via setFirstResult() and setMaxResults().

13. DML statements

Next to the support for SELECT statements, Blaze Persistence also has support for

  • UPDATE

  • DELETE

  • INSERT ... SELECT

Apart from support for DML for JPA entity types, there is also support for DML for entity collections. The construction of query builders for such statements works through the CriteriaBuilderFactory API.

13.1. DELETE statement

The DELETE statement deletes entities that satisfy the WHERE clause of the statement. A delete builder can be created via CriteriaBuilderFactory.delete().

DeleteCriteriaBuilder<Cat> cb = cbf.delete(em, Cat.class, "cat")
    .where("cat.name").isNull();
DELETE FROM Cat cat
WHERE cat.name IS NULL

You can immediately execute the query by calling executeUpdate() or create a JPA Query by calling getQuery().

Since a DELETE statement can’t have joins, implicit joins generated by deep path expressions are disallowed. Use an EXISTS subquery if you need to join relations.
Currently you can’t make use of advanced SQL features like CTEs when having a polymorphic DELETE except for single table inheritance. Also see #345
If your DBMS supports it, cascading deletes will be implemented as CTEs when deleting entities through this API.

13.2. DELETE collection statement

The DELETE collection statement deletes collection entries of entities that satisfy the WHERE clause of the statement. A collection delete builder can be created via CriteriaBuilderFactory.deleteCollection(). The statement only works on collections that have a join or collection table.

DeleteCriteriaBuilder<Cat> cb = cbf.deleteCollection(em, Cat.class, "cat", "kittens")
    .whereExists()
        .from(Cat.class, "subCat")
        .where("cat.id").eqExpression("subCat.id")
        .where("subCat.name").isNull()
    .end();

The alias cat, or in general a delete collection statement alias, only allows access to the join or collection table related attributes. Generally, these attributes are

  • The source id i.e. cat.id

  • The target id i.e. cat.kittens.id or target embeddable attributes

  • The collection index/key i.e. KEY(cat.kittens)

DELETE FROM Cat(kittens) cat
WHERE EXISTS(
    SELECT 1 FROM Cat subCat
    WHERE cat.id = subCat.id
      AND cat.name IS NULL
)

You can immediately execute the query by calling executeUpdate() or create a JPA Query by calling getQuery().

13.3. UPDATE statement

The UPDATE statement updates attributes as specified in the SET clause on entities that satisfy the WHERE clause of the statement. An update builder can be created via CriteriaBuilderFactory.update().

UpdateCriteriaBuilder<Cat> cb = cbf.update(em, Cat.class, "cat")
    .set("name")
        .from(Person.class, "p")
        .where("p").eqExpression("cat.owner")
        .select("CONCAT(p.name, '''s cat')")
    .end()
    .where("name").isNull();
UPDATE Cat cat
SET cat.name = (
    SELECT CONCAT(p.name, '''s cat')
    FROM Person p
    WHERE p = cat.owner
)
WHERE cat.name IS NULL

There are multiple set() variants to be able to cover all possible expressions.

set(String, Object)

Set the attribute to the given value. This will create an implicit parameter expression and set the value.

UpdateCriteriaBuilder<Cat> cb = cbf.update(em, Cat.class, "cat")
    .set("name", "Billy2")
    .where("name").eq("Billy");
UPDATE Cat cat
SET cat.name = :param_1
WHERE cat.name = :param_2
set(String)

Starts a subquery builder for the attribute.

UpdateCriteriaBuilder<Cat> cb = cbf.update(em, Cat.class, "cat")
    .set("name")
        .from(Person.class, "p")
        .where("p").eqExpression("cat.owner")
        .select("CONCAT(p.name, '''s cat')")
    .end()
    .where("cat.name").eq("Billy");
UPDATE Cat cat
SET cat.name = (
    SELECT CONCAT(p.name, '''s cat')
    FROM Person p
    WHERE p = cat.owner
)
WHERE cat.name = :param_1
setExpression(String, String)

Uses the given expression for the assignment to the attribute.

UpdateCriteriaBuilder<Cat> cb = cbf.update(em, Cat.class, "cat")
    .setExpression("name", "UPPER(name)")
    .where("cat.name").eq("Billy");
UPDATE Cat cat
SET cat.name = UPPER(cat.name)
WHERE cat.name = :param_1
setSubqueries(String, String)

Starts a subquery builder capable of handling multiple subqueries and assigns the given expression to the attribute. Subqueries are started with with(String subqueryAlias) and aliases occurring in the expression will be replaced by the respective subquery expressions.

UpdateCriteriaBuilder<Cat> cb = cbf.update(em, Cat.class, "cat")
    .setSubqueries("name", "CONCAT(ownerSubquery, ' the cat'")
        .with("ownerSubquery")
            .from(Person.class, "p")
            .where("p").eqExpression("cat.owner")
            .select("p.name")
        .end()
    .end()
    .where("cat.name").eq("Billy");
UPDATE Cat cat
SET cat.name = CONCAT((
    SELECT p.name
    FROM Person p
    WHERE p = cat.owner
), '''s cat')
WHERE cat.name = :param_1
Currently there is no possibility to do a VERSIONED update like you could do with e.g. Hibernate.

You can immediately execute the query by calling executeUpdate() or create a JPA Query by calling getQuery().

Since an UPDATE statement can’t have joins, implicit joins generated by deep path expressions are disallowed. Use an EXISTS subquery if you need to join relations in the WHERE clause or a scalar subquery if you need joins for the SET clause.
Currently you can’t make use of advanced SQL features like CTEs when having a polymorphic UPDATE except for single table inheritance. Also see #345

13.4. UPDATE collection statement

The UPDATE collection statement updates attributes as specified in the SET clause on entries of a collection of entities that satisfy the WHERE clause of the statement. A collection update builder can be created via CriteriaBuilderFactory.updateCollection(). The statement only works on collections that have a join or collection table.

UpdateCriteriaBuilder<Cat> cb = cbf.updateCollection(em, Cat.class, "cat", "kittens")
    .set("id", 2)
    .where("cat.id").eq(1);

You can only set attributes of the join or collection table, which generally are

  • The source id i.e. id

  • The target id i.e. kittens.id or target embeddable attributes

  • The collection index/key i.e. KEY(kittens)

The logical SQL for this re-parenting query looks like

UPDATE Cat(kittens) cat
SET cat.id = :param_1
WHERE cat.id = :param_2

This will cause all kittens that previously were associated with the cat with id 1 now to be the kittens of the cat with id 2.

13.5. INSERT-SELECT statement

The INSERT-SELECT statement allows to create new entities based on result of a SELECT query. An insert builder can be created via CriteriaBuilderFactory.insert().

This feature is currently only supported with Hibernate!

Let’s consider a simple entity class for INSERT statement examples

@Entity
public class Pet {

    @Id
    @GeneratedValue
    private Long id;
    @ManyToOne(optional = false)
    private Cat cat;
}
InsertCriteriaBuilder<Cat> cb = cbf.insert(em, Pet.class)
    .from(Cat.class, "c")
    .bind("cat").select("c")
    .where("owner").isNotNull();
INSERT INTO Pet(cat)
SELECT c
FROM Cat c
WHERE c.owner IS NOT NULL

The bind() method allows to bind any select expression to an attribute of the Pet entity. You can also bind values directly with bind(String, Object) if you want.

Hibernate 4.2 does not support parameters in the SELECT clause, so you will have to render values as literals instead.

As you can see, we didn’t specify the id attribute. This is because it’s value is going to be generated by the database.

When using Hibernate with embedded ids, you must map all the columns as basic values(no relations) directly into the entity itself, otherwise you won’t be able to assign a value to the attributes/columns.
When using Oracle, generated identifiers currently don’t work. Also see #306

13.6. INSERT-SELECT collection statement

The INSERT-SELECT collection statement inserts new collection entries. A collection insert builder can be created via CriteriaBuilderFactory.insertCollection(). The statement only works on collections that have a join or collection table.

InsertCriteriaBuilder<Cat> cb = cbf.insertCollection(em, Cat.class, "kittens")
    .from(Cat.class, "c")
    .bind("id", 2)
    .bind("kittens.id").select("c.kittens.id")
    .where("c.id").eq(1);

You can only bind attributes of the join or collection table, which generally are

  • The source id i.e. id

  • The target id i.e. kittens.id or target embeddable attributes

  • The collection index/key i.e. KEY(kittens)

The logical SQL for this kittens copying query looks like

INSERT INTO Cat.kittens(id, kittens.id)
SELECT :param_1, kittens_1.id
FROM Cat c
LEFT JOIN c.kittens kittens_1
WHERE c.id = :param_2

This will copy all kittens that are associated with the cat with id 1 to the kittens of the cat with id 2.

13.7. CTE support

If the underlying DBMS supports the use of CTEs on modification statements, you can make use of those by defining them via with(). For further information on this, check out the CTE chapter.

13.8. RETURNING clause support

The RETURNING clause allows to return values to the client based on the modified entities of a DML statement. Every DML statement can return any attributes of the entities that the statement modified.

All query builders for DML statements provide getWithReturningQuery() variants for creating a JPA TypedQuery from specifiable attributes which should be returned for modified entities.

The TypedQuery instance always returns a single ReturningResult. Calling getResultList() will just wrap the result of getSingleResult() in a list.

Although the builder returns a TypedQuery which normally doesn’t require a transaction, you have to execute such a query within an active transaction since it actually modifies entities.
For every getWithReturningQuery() variant, there exists a executeWithReturning() variant that can be used as a short hand for getWithReturningQuery().getSingleResult().

A ReturningResult basically gives you access to the update count via getUpdateCount() and a result list, representing the attributes of modified entities that were requested to be returned, via getResultList(). In addition to that, it also offers access to the last returned result via getLastResult(), but this might get removed in the future.

As you will see in the next chapter, on some DBMS you can even pipe data returned by DML into other queries.

The following examples will show how the different executeWithReturning() variants can be used.

13.8.1. RETURNING from DELETE statement

Let’s see how we can retrieve the names of cats that have been deleted.

DeleteCriteriaBuilder<Cat> cb = cbf.delete(em, Cat.class, "cat")
    .where("cat.name").like().value("Billy%").noEscape();
ReturningResult<String> result = cb.executeWithReturning("name", String.class);
List<String> names = result.getResultList();

Make sure your DBMS supports returning non-generated columns in the DBMS compatibility matrix.

DELETE FROM Cat cat
WHERE cat.name LIKE :param_1
RETURNING name

13.8.2. RETURNING from UPDATE statement

UpdateCriteriaBuilder<Cat> cb = cbf.update(em, Cat.class, "cat")
    .setExpression("cat.name", "UPPER(cat.name)")
    .where("cat.name").like().value("Billy%").noEscape();
ReturningResult<Tuple> result = cb.executeWithReturning("id", "name");
List<Tuple> updatedCatIdAndNames = result.getResultList();

Also make sure your DBMS supports returning multiple modified rows in the DBMS compatibility matrix.

UPDATE Cat cat
SET cat.name = UPPER(cat.name)
WHERE cat.name LIKE :param_1
RETURNING id, name

13.8.3. RETURNING from INSERT-SELECT statement

InsertCriteriaBuilder<Cat> cb = cbf.insert(em, Pet.class)
    .from(Cat.class, "c")
    .bind("cat").select("c")
    .where("owner").isNotNull();
ReturningResult<Pet> result = cb.executeWithReturning(new ReturningObjectBuilder<Pet>() {
    @Override
    public <X extends ReturningBuilder<X>> void applyReturning(X returningBuilder) {
        returningBuilder.returning("id");
    }

    @Override
    public Pet build(Object[] tuple) {
        return new Pet((Long) tuple[0]);
    }

    @Override
    public List<T> buildList(List<T> list) {
        return list;
    }
});
List<Pet> createdPetIds = result.getResultList();

Although not very useful, this will return pet objects with the ids of the inserted pet entities set.

INSERT INTO Pet(cat)
SELECT c
FROM Cat c
WHERE c.owner IS NOT NULL
RETURNING id

13.9. DBMS compatibility

Although it might be possible to retrieve other columns based on identifiers for DBMS that don’t support RETURNING all columns natively, there is no emulation implemented yet.

DBMS RETURNING generated RETURNING multiple rows RETURNING all

PostgreSQL

yes

yes

yes

MySQL

yes

no

no

H2

yes

no

no

Oracle

yes

yes

yes

SQL Server

yes

yes

yes

DB2

yes

yes

yes

14. CTEs

CTEs provide a way to introduce statements into a larger query that can be reused. CTEs are like temporary entity sets/tables that are created for the scope of the query and then deleted. A CTE normally contains a SELECT statement, but depending on the DBMS support, can also contain INSERT, UPDATE and DELETE statements.

This feature is currently only supported with Hibernate!

Before you can define a query for a CTE, the structure of the it has to be defined in a similar manner as an entity is defined. Don’t forget to also add it to your persistence.xml so that the JPA provider can discover it.

@CTE    // from com.blazebit.persistence
@Entity // from javax.persistence
public class MyCte {

    private Long id;

    @Id // from javax.persistence
    public Long getId() { return id; }
    public void setId(Long id) { this.id = id; }
}

The difference to a normal entity is that in addition to that, the CTE annotation is applied which treats it like a view i.e. no DDL is generated for it. A CTE can be defined on a top level query builder by using the with(Class<?>) method. The created CTE builder has to be finished by calling end() on it.

All attributes of a CTE must be bound to expressions with bind() like in the following.

CriteriaBuilder<MyCte> cb = cbf.create(em, MyCte.class)
    .with(MyCte.class)
        .from(Cat.class, "cat")
        .bind("id").select("cat.id")
    .end();
Since you can map columns multiple times in the CTE entity, it is sufficient to make sure that all columns have values bound through attribute bindings. If a column is left out, you will get an exception.

As you can see from the example, the API tries to look as much as possible like the CTE syntax as defined in the SQL-99 standard. As for all advanced features, the query string returned by getQueryString() only represents the logical structure of the whole query in a syntax that might be used one day by JPA providers to support this feature natively.

WITH MyCte(id) AS(
    SELECT cat.id FROM Cat cat
)
SELECT myCte FROM MyCte myCte

14.1. Implementation notes

Currently the CTE support is only implemented for Hibernate because of the deep integration that is needed for it to work. The integration with the persistence provider happens in the implementation of com.blazebit.persistence.spi.ExtendedQuerySupport which tries to focus on the minimal necessary methods needed for the integration to work.

In case of Hibernate, a CTE entity class is treated as if org.hibernate.annotations.Subselect was annotated. Hibernate generally generates from clause elements of the form ( select * from MyCTE ) for Subselect entities which we replace simply by the name of the CTE.

The current implementation extracts the SQL from various template JPQL queries that are created behind the scenes. After applying different transformations on the SQL and merging it together to a single SQL query, the new SQL replaces is used in a special JPQL query object. The special JPQL query object is what you can finally execute. It will make use of the SQL query that was created before.

Every CTE will result in a separate JPQL query behind the scenes from which the SQL is extracted. The SQL from the main query, together with the SQLs from the CTEs are put together to form the full SQL query. It is that SQL, the special JPQL query receives for later execution.

In order to support the org.hibernate.FetchMode.SUBSELECT this library ships with custom implementations of org.hibernate.persister.collection.CollectionPersister. Custom persister implementations should be made aware of CTEs in a similar fashion to be able to make use of the fetch mode.

14.2. Recursive CTEs

CTEs not only provide a way to extract subqueries or use subqueries in the FROM clause, but also to implement recursive queries.

A recursive CTE is normally composed of two parts, a base query(non-recursive query) and a recursive query connected with the SET operator UNION or UNION ALL. The recursive part is allowed to refer to the CTE itself.

A recursive CTE is normally evaluated in iterations

  1. The base query is evaluated and the result put into a temporary work set/table

  2. The recursive query operates on the work set/table data and replaces it with the newly produced data

  3. When the recursive query didn’t produce data, the recursion and thus the query is finished

The following illustrates how the ancestor hierarchy of an entity can be retrieved.

CTE structure definition
@CTE    // from com.blazebit.persistence
@Entity // from javax.persistence
public class CatCte {

    private Long id;
    private Cat ancestor;

    @Id // from javax.persistence
    public Long getId() { return id; }
    public void setId(Long id) { this.id = id; }

    @ManyToOne
    public Cat getAncestor() { return ancestor; }
    public void setAncestor(Cat ancestor) { this.ancestor = ancestor; }
}
Recursive query
CriteriaBuilder<CatCte> cb = cbf.create(em, CatCte.class)
    .withRecursive(CatCte.class)
        .from(Cat.class, "cat") (1)
        .bind("id").select("cat.id")
        .bind("ancestor").select("cat.ancestor")
        .where("id").eq(someCatId)
    .unionAll()
        .from(Cat.class, "cat")
        .from(CatCte.class, "parentCat") (2)
        .bind("id").select("cat.id")
        .bind("ancestor").select("cat.ancestor")
        .where("id").eqExpression("parentCat.ancestor.id") (3)
    .end();
1 We start with the non-recursive query and just bind the cat attributes of the desired cat
2 We refer to the CTE itself in the recursive query to be able to join data with data of the previous iteration
3 Only join the cats that are an ancestor of the cats from the previous iteration
Logical representation
WITH RECURSIVE CatCte(id, ancestor) AS(
    SELECT cat.id, cat.ancestor FROM Cat cat WHERE cat.id = :someCatId
    UNION ALL
    SELECT cat.id, cat.ancestor FROM Cat cat, CatCte parentCat WHERE cat.id = parentCat.ancestor.id
)
SELECT catCte FROM CatCte catCte

This will return all the ancestors of the Cat with an id equal to someCatId.

14.3. Updatable CTEs

An updatable CTE is like a normal CTE, but the data comes from returned attributes of a DML statement.

At this point, only PostgreSQL and DB2 support this feature.

You can start an updatable CTE with the withReturning() method and subsequently decide the DML statement type. The query builder for the DML statement provides a returning() method for binding attributes of the DML statement to a CTE attribute.

CriteriaBuilder<MyCte> cb = cbf.create(em, MyCte.class)
    .withReturning(MyCte.class)
        .delete(Cat.class, "cat")
        .where("cat.name").isNull()
        .returning("id", "cat.id")
    .end();
WITH MyCte(id) AS(
    DELETE FROM Cat cat
    WHERE cat.name IS NULL
    RETURNING id
)
SELECT myCte FROM MyCte myCte

The query deletes cats with a NULL name. For every deleted cat, a temporary MyCte entity with the cat’s id bound is created. Finally the deleted cats are queried through MyCte.

As you can imagine, this can be used to define very efficient data pipelines.

One problem with updatable CTEs that might come up is, that you might want to query an entity in one CTE, while also wanting to do a modification in a different CTE. Since the visibility of changes that are done in updatable CTEs might differ from one to another DBMS, Blaze Persistence offers a way to resolve this special case.

Let’s consider the following example:

CriteriaBuilder<Cat> cb = cbf.create(em, Cat.class)
    .withReturning(MyCte.class)
        .delete(Cat.class, "cat")
        .where("cat.name").isNull()
        .returning("id", "cat.id")
    .end()
    .from(Cat.class, "theCat");
WITH MyCte(id) AS(
    DELETE FROM Cat cat
    WHERE cat.name IS NULL
    RETURNING id
)
SELECT theCat FROM Cat theCat

Although the CTE MyCte is never used, it is still executed. Depending on the DBMS you are on, the SELECT statement will return the state before or after the DELETE statement happened.

Multiple updatable CTEs for the same entity in a single query are not supported.

In order to make the SELECT statement portable, Blaze Persistence provides a way to qualify a FROM clause element to use the old or new state i.e. before or after modifications happened.

CriteriaBuilder<Cat> cb = cbf.create(em, Cat.class)
    .withReturning(MyCte.class)
        .delete(Cat.class, "cat")
        .where("cat.name").isNull()
        .returning("id", "cat.id")
    .end()
    .fromOld(Cat.class, "theCat");
WITH MyCte(id) AS(
    DELETE FROM Cat cat
    WHERE cat.name IS NULL
    RETURNING id
)
SELECT theCat FROM OLD(Cat) theCat

The fromOld() method qualifies the FROM element in the query as old. In the same way does fromNew() qualify the FROM element as new.

In general, we advise you to rethink how you do the querying when having a need for this feature. It should only be used as a last resort.

14.4. DBMS compatibility

Currently there is no emulation implemented for databases that do not support CTEs natively. CTEs are well tested with PostgreSQL, DB2, Oracle and Microsoft SQL Server. Many of the basic features work with H2, but beware that H2 support for CTEs is still experimental.

We do not recommend using CTEs with H2 because of some very serious limitations. Using a CTE in an IN predicate or using LIMIT within the CTE have proven to produce wrong results. You also can’t have multiple CTEs per query.

CTEs in DML are uses of a CTE where the top level statement is a DML. In contrast, Updatable CTEs are CTEs that contain DML and get their values from a RETURNING clause of the DML.

DBMS Normal CTEs Recursive CTEs CTEs in DML Updatable CTEs

PostgreSQL

yes

yes

yes

yes

MySQL

no

no

no

no

H2

partly

partly

no

no

Oracle

yes

partly

yes

no

SQL Server

yes

yes

yes

no

DB2

yes

yes

yes

yes

15. Set operations

A set operation connects result lists of queries. The most well-known set operations are UNION and UNION ALL which merge the result lists of two queries. Apart from that, there is an operation that produces the commonalities of two result lists i.e. the intersection and an operation that subtracts commonalities i.e. minus/except.

All operations require that the connected queries must have the same number of select items with the same data types.

This feature is currently only supported with Hibernate!

The SQL standard defines the following set operations for connecting two queries query1 and query2 which is also what Blaze Persistence adopts

  • UNION - Merges results from query1 and query2 but filters out duplicates.

  • UNION ALL - Merges results from query1 and query2 without filtering duplicates.

  • INTERSECT - Creates a result based on distinct elements that appear in both query1 and query2

  • INTERSECT ALL - Creates a result based on all elements that appear in both query1 and query2 i.e. not filtering out duplicates

  • EXCEPT - Creates a result based on distinct elements of query1 that don’t appear in query2

  • EXCEPT ALL - Creates a result based on all elements of query1 that don’t appear in query2

These set operations are not only useful for scalar queries, but can also be used when querying for entities.

There are some limitations to using set operations with polymorphic queries.

15.1. Normal set operations

A set operation ends the source query builder and starts a new query builder. This new builder then has to be explicitly ended.

FinalSetOperationCriteriaBuilder<Cat> cb = (1)
    cbf.create(em, Cat.class)
        .from(Cat.class, "cat")
        .where("name").eq("Billy")
    .unionAll() (2)
        .from(Cat.class, "cat")
        .where("name").eq("Johnny")
    .endSet(); (3)
1 The query builder has a different type, since it represents the builder for the set operation query
2 Use any set operation here
3 You must end the set operation explicitly

The call to unionAll() ends the previous query builder making any operations on it fail with an exception. Finally endSet() ends the last query builder.

SELECT cat FROM Cat cat WHERE cat.name = :param_1
UNION ALL
SELECT cat FROM Cat cat WHERE cat.name = :param_2

You can chain as many queries with set operations with the following methods

All operations have the same precedence i.e. they are executed from left to right. The only way to order the operations is by grouping them with parenthesis as shown in the next chapter.

You can also make use of set operations in CTEs like the following example shows.

@CTE    // from com.blazebit.persistence
@Entity // from javax.persistence
public class MyCte {

    private Long id;

    @Id // from javax.persistence
    public Long getId() { return id; }
    public void setId(Long id) { this.id = id; }
}
CriteriaBuilder<Cat> cb =
    cbf.create(em, Cat.class)
        .with(MyCte.class)
                .from(Cat.class, "cat1")
                .bind("id").select("cat1.id")
                .where("name").eq("Billy")
            .unionAll()
                .from(Cat.class, "cat2")
                .bind("id").select("cat2.id")
                .where("name").eq("Johnny")
            .unionAll()
                .from(Cat.class, "cat3")
                .bind("id").select("cat3.id")
                .where("name").eq("Franky")
            .endSet() (1)
        .end()
        .from(Cat.class, "cat")
        .where("id").in()
            .from(MyCte.class, "myCte")
            .select("myCte.id")
        .end();
1 The result of endSet() allows to apply sorting and limiting

The API is the same, and produces the expected query.

WITH MyCte(id) AS (
    SELECT cat1.id FROM Cat cat1 WHERE cat1.name = :param_1
    UNION ALL
    SELECT cat2.id FROM Cat cat2 WHERE cat2.name = :param_2
    UNION ALL
    SELECT cat3.id FROM Cat cat3 WHERE cat3.name = :param_3
)
SELECT cat FROM Cat cat WHERE cat.id IN (
    SELECT myCte.id FROM MyCte myCte
)

Finally, there is also support for set operations within subqueries.

CriteriaBuilder<Cat> cb =
    cbf.create(em, Cat.class)
        .from(Cat.class, "cat")
        .where("id").in()
                .from(Cat.class, "cat1")
                .select("cat1.id")
                .where("name").eq("Billy")
            .unionAll()
                .from(Cat.class, "cat2")
                .select("cat2.id")
                .where("name").eq("Johnny")
            .unionAll()
                .from(Cat.class, "cat3")
                .select("cat3.id")
                .where("name").eq("Franky")
            .endSet()
        .end();
SELECT cat FROM Cat cat WHERE cat.id IN (
    FUNCTION(
        'SET_UNION_ALL',
        (SELECT cat1.id FROM Cat cat1 WHERE cat1.name = :param_1),
        (SELECT cat2.id FROM Cat cat2 WHERE cat2.name = :param_2),
        (SELECT cat3.id FROM Cat cat3 WHERE cat3.name = :param_3)
    )
)

As you can see, this is rendered differently. It makes use of custom JPQL functions that could even be directly executed by the JPA provider. This is possible because Blaze Persistence registers the JPQL functions for the entire persistence unit. These functions produce the necessary SQL in-place which is more efficient than a complete SQL replacement. The following set operation functions are registered by default:

15.2. Right nested set operations

In order to support grouping of set operations, Blaze Persistence has a special API for grouping the left and right hand sides of set operations. Normally in SQL, the grouping can be achieved by using parenthesis which you can see in the logical query. Unfortunately it is not so easy to provide support for such a grouping in a builder API which is why there are special methods for starting and connecting such a group with set operations. Applying a set operation on such a parenthesis is possible with one of the startXXX() methods:

FinalSetOperationCriteriaBuilder<Cat> cb =
    cbf.create(em, Cat.class)
            .from(Cat.class, "cat")
            .where("name").eq("Billy")
        .startUnionAll()
                .from(Cat.class, "cat")
                .where("name").eq("Johnny")
            .union()
                .from(Cat.class, "cat")
                .where("name").eq("Franky")
        .endSet() (1)
    .endSet(); (2)
1 Ends the nested set operation group started by startUnionAll()
2 The second endSet() might feel weird, but is actually necessary to end the implicitly started set operation on the main query

You can imagine any startXXX() being the opening parenthesis that must be ended with a endSet() representing the closing parenthesis. Since you could apply other set operations on that group, you are required to signal that you are done with the builder by calling endSet().

SELECT cat FROM Cat cat WHERE cat.name = :param_1
UNION ALL
(
    SELECT cat FROM Cat cat WHERE cat.name = :param_2
    UNION
    SELECT cat FROM Cat cat WHERE cat.name = :param_3
)

15.3. Left nested set operations

Similarly you can also have a left nested group for set operations.

FinalSetOperationCriteriaBuilder<Cat> cb =
    cbf.startSet(em, Cat.class) (1)
            .from(Cat.class, "cat")
            .where("name").eq("Billy")
        .unionAll()
            .from(Cat.class, "cat")
            .where("name").eq("Johnny")
        .endSet()
    .union()
        .from(Cat.class, "cat")
        .where("name").eq("Franky")
    .endSet();
(
    SELECT cat FROM Cat cat WHERE cat.name = :param_1
    UNION ALL
    SELECT cat FROM Cat cat WHERE cat.name = :param_2
)
UNION
SELECT cat FROM Cat cat WHERE cat.name = :param_3

The left nesting is started by startSet() which more or less represents the open parenthesis. The parenthesis is then closed by calling endSet().

At the beginning of every nesting group, you can start as many left nestings as you want by calling startSet() and doing so intuitively always results in an open parenthesis that has to be closed by a endSet().

15.4. Empty nested set operations

As a convenience, Blaze Persistence allows to have empty nested set operation groups like the following.

FinalSetOperationCriteriaBuilder<Cat> cb =
    cbf.startSet(em, Cat.class)
    .endSet()
    .union()
        .from(Cat.class, "cat")
        .where("name").eq("Franky")
    .endSet();

Contrary to what you might think, this is allowed and results in the following query.

SELECT cat FROM Cat cat WHERE cat.name = :param_1

This is done to make it possible to pass the result of startSet() to consumers which may or may not add set operands.

15.5. Ordering and limiting with set operations

Since set operations might change the order of elements in the overall result, they also allow to define an ORDER BY clause for the result of a set operation group.

The order by elements are resolved against the first set operand. This means that you can only order by select aliases of the first query in the set operation. If the order by element does not refer to a select alias, it is implicitly resolved against the query root like in the following example.

FinalSetOperationCriteriaBuilder<Cat> cb =
    cbf.create(em, Cat.class)
        .from(Cat.class, "cat")
        .where("name").eq("Billy")
    .unionAll()
        .from(Cat.class, "cat")
        .where("name").eq("Johnny")
    .endSet()
    .orderByAsc("name")
    .setFirstResult(1)
    .setMaxResults(1);
SELECT cat FROM Cat cat WHERE cat.name = :param_1
UNION ALL
SELECT cat FROM Cat cat WHERE cat.name = :param_2
ORDER BY name ASC NULLS LAST
LIMIT 1 OFFSET 1

Apart from the ordering by name, this query will also skip the first element and limit the elements to be returned to one.

Note that LIMIT and OFFSET operate on the scalar results and not on entity elements. A collection joins might result in multiple elements per entity.

Ordering and limiting is also possible for nested set operation groups and can be realized by invoking the endSetWith() operation. Calling endSetWith() is necessary to end the current query builder i.e. switch the context to the whole set operation group. After applying ordering and limiting the set operation group has to be closed with endSet().

FinalSetOperationCriteriaBuilder<Cat> cb =
    cbf.startSet(em, Cat.class) (1)
            .from(Cat.class, "cat")
            .where("name").eq("Billy")
        .unionAll()
            .from(Cat.class, "cat")
            .where("name").eq("Johnny")
        .endSetWith()
            .orderByAsc("name")
            .setMaxResults(1)
        .endSet()
    .union()
        .from(Cat.class, "cat")
        .where("name").eq("Franky")
    .endSet();
(
    SELECT cat FROM Cat cat WHERE cat.name = :param_1
    UNION ALL
    SELECT cat FROM Cat cat WHERE cat.name = :param_2
    ORDER BY name
    LIMIT 1
)
UNION
SELECT cat FROM Cat cat WHERE cat.name = :param_3

15.6. DBMS compatibility

Currently there is no emulation implemented for databases that do not support set operations natively. One type of emulation that is implemented however is for the non-distinct variants INTERSECT ALL and EXCEPT ALL in case the distinct variant is supported. The emulation for the non-distinct variants is implemented by adding the ROW_NUMBER to an operand which is removed afterwards.

The DBMS support for set operations is quite good.

DBMS UNION ALL UNION INTERSECT ALL INTERSECT EXCEPT ALL EXCEPT

PostgreSQL

yes

yes

yes

yes

yes

yes

MySQL

yes

yes

no 1

no 1

no 1

no 1

H2

yes

yes

no 2

yes

no 2

yes

Oracle

yes

yes

yes 3

yes

yes 3

yes

SQL Server

yes

yes

yes 3

yes

yes 3

yes

DB2

yes

yes

yes

yes

yes

yes

  1. MySQL only supports the UNION and UNION ALL operator

  2. For implementing the ALL variant, a row number for a grouping is required i.e. ROW_NUMER() OVER() which isn’t supported by H2

  3. Emulated via ROW_NUMBER

Except for H2 the operations can also be used in almost any context.

DBMS Use in CTE In Subquery with LIMIT

PostgreSQL

yes

yes

MySQL

no

yes

H2

no 1

no

Oracle

yes

yes

SQL Server

yes

yes

DB2

yes

yes

  1. Since CTEs are pretty much experimental in H2, you might encounter problems like with parameters

16. Entity functions

Entity functions are the equivalent of table-valued or table-generating functions in the ORM realm.

Currently, entity functions aren’t implemented but are about to be. See #181 for further information.

16.1. Built-in entity functions

16.2. Custom entity functions

17. JPQL functions

JPQL offers many built-in functions as you can see in the expressions chapter and as of JPA 2.1 has a syntax for calling database specific functions. Normally when using the function syntax FUNCTION ( function_name (, args)* ), the JPA provider puts a function call into the SQL like function_name ( args* ). Instead of simply passing through the function invocation to the SQL, Blaze Persistence decided to reuse the function syntax to allow calling so called JPQL functions.

JPQL functions are registered at configuration time and are integrated into a persistence unit, so you could even use the functions by using the JPA provider specific invocation syntax directly. Except for a few special built-in functions, every function has DBMS specific implementations of the JpqlFunction interface that are registered through a JpqlFunctionGroup on the CriteriaBuilderConfiguration.

Depending on the DBMS that is encountered at runtime, Blaze Persistence selects the appropriate functions during configuration and registers them in the persistence unit.

17.1. Special built-in functions

These functions have a deeper integration with the query building process and do not directly generate SQL.

17.1.1. SIZE function

The SIZE function, which was already briefly explained in the [Collection functions] section, returns the number of elements of a mapped collection. This function is defined by JPQL and Blaze Persistence chose to improve the performance by applying custom query transformations when encountering it. Normally, a JPA provider will not care to optimize the SIZE function for you and will simply generate a correlated subquery for any uses.

Blaze Persistence currently has transformations for SIZE invocations in the SELECT and ORDER BY clauses. These transformations happen during query generation, so you can see the result by calling getQueryString() on your query builder.

The transformation will

  1. add a LEFT JOIN for the collection of the SIZE invocation

  2. add a GROUP BY for the entity that owns the collection

  3. and replace the SIZE invocation with a COUNT or COUNT_TUPLE expression

This transformation also works when having multiple SIZE invocations. If an invocation can’t be transformed that way, a simple correlated subquery is generated. There are different reasons why a transformation could fail, but the most common are

  • The collection is a bag

  • The query has multiple query roots

  • Multiple SIZE invocations with different collection owners

If you prefer subqueries or have problems with the transformation, you can turn the transformation off via a configuration property.

Since the transformation introduces aggregate expressions into the query, it is necessary to have implicit group by generation enabled if other expressions appear in the SELECT, ORDER BY or HAVING clause. By default implicit group by generation is enabled and we recommend you don’t turn it off.

CriteriaBuilder<Tuple> cb = cbf.create(em, Tuple.class)
    .from(Cat.class, "cat")
    .select("cat.name")
    .select("SIZE(kittens)")
    .orderByDesc("id");
SELECT cat.name, FUNCTION('COUNT_TUPLE', kittens_1.id)
FROM Cat cat
LEFT JOIN cat.kittens kittens_1
GROUP BY cat.id, cat.name
ORDER BY cat.id DESC NULLS LAST

As you can see, the expressions cat.name and id of the SELECT and ORDER BY clause are implicitly added to the GROUP BY because of the aggregate function COUNT_TUPLE being used.

17.1.2. OUTER function

The OUTER function is an extension provided by Blaze Persistence that can be used to refer to attributes of the parent query’s root. By using OUTER you can avoid introducing the query root alias of the outer query into the subquery directly.

CriteriaBuilder<Tuple> cb = cbf.create(em, Tuple.class)
    .from(Cat.class, "cat")
    .whereExists()
        .from(Cat.class, "subCat")
        .where("subCat.name").notEqExpression("OUTER(name)")
    .end();
SELECT cat
FROM Cat cat
WHERE EXISTS (
    SELECT 1
    FROM Cat subCat
    WHERE subCat.name <> cat.name
)

The OUTER invocation is replaced by the absolute path expression.

Currently it is not allowed to have nested OUTER invocations, but this is already planned. For more information see #317

17.2. Built-in functions

These functions are provided by Blaze Persistence and are registered by default in every CriteriaBuilderConfiguration. They can be overridden at configuration time if desired.

Every of the following functions has to be invoked with the JPA 2.1 function syntax.

17.2.1. COUNT_TUPLE function

Syntax: FUNCTION ( 'COUNT_TUPLE' (, 'DISTINCT' )?, args+ )

The COUNT_TUPLE function is like the regular COUNT function, but in addition allows to do distinct counting on multiple and embeddable attributes. Some JPA providers ignore that some DBMS don’t support distinct counts on multiple columns and generate broken SQL. This function will transform the distinct count for DBMS that don’t have native support to something equivalent.

The emulation is based on the idea, that the NUL character \0 is a valid character in any text type on the DBMS but won’t ever appear in real data. A distinct count for two columns can be emulated by doing the following expression instead

COUNT(DISTINCT
    COALESCE(
        NULLIF(
            COALESCE(
                COL1 || '', (1)
                '\0'        (2)
            ),
            ''              (3)
        ),
        '\01'               (4)
    ) ||
    '\0' ||                 (5)
    COALESCE(
        NULLIF(
            COALESCE(
                COL2 || '',
                '\0'
            ),
            ''
        ),
        '\02'
    )
)
1 Concat with empty string to get implicit conversion to text type
2 NULL values are replaced by the NUL character
3 Produce NULL if the value is an empty string for the next step
4 The NULL is required so we can transform empty strings to the text NUL character concatenated with the column number i.e. '\0' || '1'
5 Separate the column values with a NUL character

By doing a distinct count on the resulting string, the ANSI SQL distinct counting can be fully emulated.

17.2.2. CAST functions

Syntax: FUNCTION ( 'CAST_XXX', argument )

There are multiple different cast functions for different data types.

  • Boolean - CAST_BOOLEAN

  • Byte - CAST_BYTE

  • Short - CAST_SHORT

  • Integer - CAST_INTEGER

  • Long - CAST_LONG

  • Float - CAST_FLOAT

  • Double - CAST_DOUBLE

  • Character - CAST_CHARACTER

  • String - CAST_STRING

  • BigInteger - CAST_BIGINTEGER

  • BigDecimal - CAST_BIGDECIMAL

  • java.sql.Time - CAST_TIME

  • java.sql.Date - CAST_DATE

  • java.sql.Timestamp - CAST_TIMESTAMP

  • java.util.Calendar - CAST_CALENDAR

A cast invocation will always generate a ANSI SQL cast. The SQL data type for a Java type is determined by DbmsDialect.getSqlType(). By providing a custom DBMS dialect you can override these types.

CriteriaBuilder<String> cb = cbf.create(em, String.class)
    .from(Cat.class, "cat")
    .select("FUNCTION('CAST_STRING', cat.age)");
SELECT FUNCTION('CAST_STRING', cat.age)
FROM Cat cat

17.2.3. TREAT functions

Syntax: FUNCTION ( 'TREAT_XXX', argument )

This function is used internally and no user should ever have the need for this!

There are multiple different treat functions for different data types.

  • Boolean - TREAT_BOOLEAN

  • Byte - TREAT_BYTE

  • Short - TREAT_SHORT

  • Integer - TREAT_INTEGER

  • Long - TREAT_LONG

  • Float - TREAT_FLOAT

  • Double - TREAT_DOUBLE

  • Character - TREAT_CHARACTER

  • String - TREAT_STRING

  • BigInteger - TREAT_BIGINTEGER

  • BigDecimal - TREAT_BIGDECIMAL

  • java.sql.Time - TREAT_TIME

  • java.sql.Date - TREAT_DATE

  • java.sql.Timestamp - TREAT_TIMESTAMP

  • java.util.Calendar - TREAT_CALENDAR

A treat invocation will only adjust the type of the expression in the JPQL expression and not cause an explicit cast on the DBMS side. This can be used for cases when the type of an expression is actually known but can’t be inferred.

This is an internal function that is used to implement the VALUES clause for basic types. It is not intended for direct use and might change without notice.

17.2.4. Temporal DIFF functions

Syntax: FUNCTION ( 'XXX_DIFF', start, end )

Calculates the difference between the two given temporals like end - start and returning the difference in the requested unit as truncated integer.

The possible units and the respective function names are:

  • Millisecond - MILLISECOND_DIFF

  • Second - SECOND_DIFF

  • Minute - MINUTE_DIFF

  • Hour - HOUR_DIFF

  • Day - DAY_DIFF

  • Month - MONTH_DIFF

  • Year - YEAR_DIFF

If end < start i.e. the value of end is before start, the result is negative. You are advised to explicitly handle this case or use the ABS function.

17.2.5. Temporal extract functions

Syntax: FUNCTION ( 'XXX', argument )

Extracts the requested field of temporal argument like specified by the ANSI SQL EXTRACT expression.

The possible fields and the respective function names are:

  • Second - SECOND

  • Minute - MINUTE

  • Hour - HOUR

  • Day - DAY

  • Month - MONTH

  • Year - YEAR

  • Epoch - EPOCH

17.2.6. GREATEST function

Syntax: FUNCTION ( 'GREATEST', argument1, argument2 (, ...)? )

Returns the greatest value of all given arguments.

17.2.7. LEAST function

Syntax: FUNCTION ( 'LEAST', argument1, argument2 (, ...)? )

Returns the smallest value of all given arguments.

17.2.8. REPEAT function

Syntax: FUNCTION ( 'REPEAT', argument1, argument2 )

Returns a string with the argument1 repeated for argument2 times.

17.2.9. LIMIT function

Syntax: FUNCTION ( 'LIMIT', subquery, limit (, offset )? )

Applies the DBMS native way of doing LIMIT and OFFSET with the given values limit and offset on the given subquery.

The function makes use of the DbmsLimitHandler provided by the DbmsDialect.

Normally, you don’t need to use this function directly as the subquery builder API offers direct support for setFirstResult() and setMaxResults(). It is not intended for direct use and might change without notice.
This is an internal function which is not intended for direct use and might change without notice.
If you use this function directly, beware that for some DBMS it might not be possible to use parameters in LIMIT and OFFSET so if you really require a parameter, make sure it works for your database.

17.2.10. PAGE_POSITION function

Syntax: FUNCTION ( 'PAGE_POSITION', id_query, entity_id )

Returns the absolute 1-based position of the entity with the given id within the result produced by the given id query. The id query must select only the id of an entity and must be of a basic type. The entity id can be a parameter or plain value.

This is an internal function that is used to implement pageAndNavigate(Object entityId, int maxResults). It is not intended for direct use and might change without notice.

17.2.11. GROUP_CONCAT function

Syntax: FUNCTION ( 'GROUP_CONCAT' (, DISTINCT)?, expression (, 'SEPARATOR', separator_expression)? (, 'ORDER BY' (, order_by_expression (, order_specification ) )+ )? )

Where order_specification is one of 'ASC', 'DESC', 'ASC NULLS FIRST', 'ASC NULLS LAST', 'DESC NULLS FIRST', 'DESC NULLS LAST' and separator_expression by is ',' by default.

Aggregates/concatenates the values produced by expression to a single string separated by separator_expression in the order defined by the ORDER BY clause.

This function might not be supported by all DBMS, so make sure your target database does before using it

17.2.12. SET functions

Syntax: FUNCTION ( 'SET_XXX', subqueries+ (, 'ORDER BY' (, order_by_expression (, order_specification ) )+ )? (, 'LIMIT', limit_expression (, 'OFFSET', offset_expression )? )? )

This function is used internally and no user should ever have the need for this!

For every type of set operation, there is a function.

  • UNION - SET_UNION

  • UNION_ALL - SET_UNION_ALL

  • INTERSECT - SET_INTERSECT

  • INTERSECT_ALL - SET_INTERSECT_ALL

  • EXCEPT - SET_EXCEPT

  • EXCEPT_ALL - SET_EXCEPT_ALL

Applies the DBMS native way of connecting the given subqueries with the requested set operation, ordering and limiting/skipping. The function makes use of DbmsDialect.appendSet() for rendering.

This is an internal function that is used to implement set operations for subqueries. It is not intended for direct use and might change without notice.

For further information on DBMS support take a look at the set operations chapter.

17.2.13. COMPARE_ROW_VALUE function

Syntax: FUNCTION ( 'COMPARE_ROW_VALUE', comparison_operator, CASE WHEN (1=NULLIF(1,1) AND row_value_1_1=row_value_2_1 AND row_value_1_2=nullif(1,1) ... AND row_value_1_n=row_value_2_n AND row_value_1_2=row_value_2_2 THEN 1 ELSE 0 END)

Produces a DBMS native row value comparison expression such as (row_value_1_1, row_value_1_2, ..., row_value_1_n) < (row_value_2_1, row_value_2_2, ..., row_value_2_n).

This is an internal function that is used to implement optimized keyset pagination. It is not intended for direct use and might change without notice.

17.2.14. SUBQUERY function

Syntax: FUNCTION ( 'SUBQUERY', subquery)

Simply renders the subquery argument.

This is an internal function that is used to bypass the Hibernate parser for rendering subqueries as aggregate function arguments.

17.2.15. ENTITY_FUNCTION function

Syntax: FUNCTION ( 'ENTITY_FUNCTION', subquery, entityName, valuesClause, valuesAliases, syntheticPredicate)

Rewrites the passed in query by replacing placeholder SQL parts with the proper SQL.

This is an internal function that is used to implement entity functions like the VALUES clause for subqueries. It is not intended for direct use and might change without notice.

17.3. Custom JPQL functions

Apart from providing many useful functions out of the box, Blaze Persistence also allows to implement custom JPQL functions that can be called just like any other non-standard function, via the JPA 2.1 function syntax. In addition to that, you can even override existing implementations. So if you need to workaround bugs or want to improve something, you don’t have to wait for a release.

Custom functions are registered via CriteriaBuilderConfiguration.registerFunction() and expect an instance of a JpqlFunctionGroup. A JpqlFunctionGroup is a container for a custom function that defines the function name, whether it is an aggregate function and the DBMS specific implementations of it as instances of JpqlFunction.

When a function is marked as being an aggregate function, it is treated like any other aggregate function regarding implicit group by generation. This means that the occurrence of the function invocation in a query builder, will trigger implicit group by generation.

During the building of a CriteriaBuilderFactory the DBMS specific implementations of the registered JpqlFunctionGroup instances are selected. If there is no DBMS specific one available, it will fallback to the default. If there is no default implementation available, a warning message is emitted, saying that no applicable function was found.

17.3.1. Implementing and registering a custom JPQL function

Let’s implement a simple function for illustration purposes. The function should calculate the sum of two arguments and be called CALCULATE_SUM.

public class SumFunction implements JpqlFunction {

    @Override
    public boolean hasArguments() {
        return true;                            (1)
    }

    @Override
    public boolean hasParenthesesIfNoArguments() {
        return true;                            (2)
    }

    @Override
    public Class<?> getReturnType(Class<?> firstArgumentType) {
        return firstArgumentType;               (3)
    }

    @Override
    public void render(FunctionRenderContext context) {
        context.addArgument(0);                 (4)
        context.addChunk("+");
        context.addArgument(1);
    }

}
1 Denotes if the function has arguments
2 Denotes whether the function will have parenthesis when no arguments are passed
3 The return type of the function, in our case, it’s going to be the same as the firstArgumentType
4 Adds the first argument to the resulting sql, then the plus operator and finally the second argument

The getReturnType() method can only make use of the first argument type because Hibernate does not expose other argument types, but that should be enough most of the time. In case you would need other argument types, you should create separately named functions to handle the return types.

The actual rendering of SQL is done with addArgument() and addChunk of the FunctionRenderContext.

With addArgument(int index) you add the argument at the given index to the SQL output. You can also get access to the SQL string of the argument by using getArgument(). To get the number of actual arguments, you can use getArgumentsSize(). Finally, it is also possible to add an arbitrary string to the SQL output with addChunk(String).

The API is admittedly bad and will be reworked in the next major version.
Using the TemplateRenderer will hopefully help mitigate the pain a bit.

In order to register the function, you only have to create a JpqlFunctionGroup with that JpqlFunction and register that on the configuration. See the environment section for how to get access to the CriteriaBuilderConfiguration.

CriteriaBuilderConfiguration config = //...
JpqlFunctionGroup calculateSumFunction = new JpqlFunctionGroup("CALCULATE_SUM", new SumFunction());
config.registerFunction(calculateSumFunction);

If you want to register a JpqlFunction for a specific DBMS then use JpqlFunctionGroup.add().

CriteriaBuilderConfiguration config = //...
JpqlFunctionGroup calculateSumFunction = new JpqlFunctionGroup("CALCULATE_SUM", new SumFunction());
calculateSumFunction.add("h2", null);
config.registerFunction(calculateSumFunction);

Passing null like in the example above, will disable the function for the specified DBMS.

Currently you can register functions for the following DBMS

  • mysql

  • db2

  • postgresql

  • oracle

  • microsoft

  • sybase

  • h2

  • cubrid

  • hsql

  • informix

  • ingres

  • interbase

  • sqlite

  • firebird

The determination of the DBMS happens in implementations of EntityManagerFactoryIntegrator that reside in the JPA provider integrations. The determination is provider specific and there is currently no way of overriding this behavior.

17.3.2. Parameters in JPQL functions

If one of the arguments of a JPQL function contains a parameter, you must render the arguments in the same order to the SQL. At the time of SQL rendering, there are only positional parameters, so rendering arguments in a different order might lead to wrong parameter bindings. Another possible problem might arise when you want to make use of an argument multiple times in the resulting SQL. Since the ORM doesn’t know of the new parameter, the value won’t be bound or worse, will be bound to a wrong value.

Here are some solutions to handling the problems with parameters

  • Disallow parameters by throwing a runtime exception

  • Change the function specification so that the argument order doesn’t have to be changed (doesn’t work when only few DBMS require a different order)

  • Render the arguments in the correct order into a SQL VALUES clause or simple SELECT statement and use the aliases instead of the arguments directly

For an example on using the VALUES clause take a look at the implementation of e.g. PostgreSQLDayDiffFunction.

17.4. Custom JPQL macros

A JpqlMacro is a special kind of function that is evaluated at expression parse time and produces a JPQL expression. Contrary to a JpqlFunction, a macro only needs to provide a render() method and does not suffer of the problems regarding parameters since it produces a JPQL expression rather than SQL.

One of the possible use cases for macros is to have user defined expression expansions to avoid boilerplate. Let’s implement a macro called ITEM_TOTAL.

public class ItemTotalMacro implements JpqlMacro {

    @Override
    public void render(FunctionRenderContext context) {
        context.addChunk("(1 + ");
        context.addArgument(0);
        context.addChunk(".taxClass.taxValue / 100) * ");

        context.addArgument(0);
        context.addChunk(".quantity * ");
        context.addArgument(0);
        context.addChunk(".price");
    }

}

When passing in an expression like alias, the macro will produce the expression (1 + alias.taxClass.taxValue / 100) * alias.quantity * alias.price. The macro can be either globally registered in the configuration or on a case by case basis directly on the CriteriaBuilder. See the environment section for how to get access to the CriteriaBuilderConfiguration.

CriteriaBuilderConfiguration config = //...
config.registerMacro("ITEM_TOTAL", new ItemTotalMacro());

Since macros aren’t actually functions and are pretty unique to Blaze Persistence, we decided to allow invoking them directly instead of having to use the JPA 2.1 function syntax.

Let’s see how the macro can be used to easily calculate the total amount of an order.

CriteriaBuilder<Long> cb = cbf.create(em, Long.class)
    .from(Order.class, "o")
    .select("SUM(ITEM_TOTAL(o.items))");
SELECT SUM((1 + taxClass_1.taxValue / 100) * items_1.quantity * items_1.price)
FROM Order o
LEFT JOIN o.items items_1
LEFT JOIN items_1.taxClass taxClass_1

To wrap it up, macros help to reuse expressions and avoid boilerplate!

Currently there are no built-in JPQL macros available in the core part of Blaze Persistence but only in the entity view module.

One of the use cases for JPQL macros is the VIEW_ROOT function of the Entity Views module.

18. Customize DBMS dialect

A DBMS dialect abstracts away some of the specifics of a DBMS like e.g. whether set operations are supported. Although Blaze Persistence tries very hard to make the DBMS dialects work on the most recent DBMS versions, it might sometimes be necessary to adapt the dialect to specific needs.

In general, you are well advised to extend the DBMS dialect that matches your DBMS best and override the methods you want in order to get the desired behavior.

A custom DBMS dialect must be registered on the configuration at boot time via registerDialect(). See the environment section for how to get access to the CriteriaBuilderConfiguration.

CriteriaBuilderConfiguration config = //...
config.registerDialect("h2", new MyH2DbmsDialect());

18.1. Custom SQL type mappings

Sometimes it might be necessary to adapt the Java type to SQL type mappings for your DBMS. In order to do so, introduce a new method getSqlTypes and extend the dialect like

public class MyH2DbmsDialect extends H2DbmsDialect {

    public MyH2DbmsDialect() {
        super(getSqlTypes());
    }

    private static Map<Class<?>, String> getSqlTypes() {
        Map<Class<?>, String> types = new HashMap<Class<?>, String>();

        types.put(String.class, "nvarchar");

        return types;
    }
}

18.2. Other customizations

There are many other customizations possible. Take a look at the DbmsDialect API for more information.

19. Configuration

Blaze Persistence can be configured by setting properties on a CriteriaBuilderConfiguration object and creating a CriteriaBuilderFactory from it.

You can also set configuration properties on a per builder basis via the setProperty(String, String) method.

19.1. Configuration properties

19.1.1. COMPATIBLE_MODE

Enables JPA compatibility mode to disallow the usage of vendor specific extensions. This will result in higher portability.

Key com.blazebit.persistence.compatible_mode

Type

boolean

Default

false

Applicable

Configuration only

19.1.2. RETURNING_CLAUSE_CASE_SENSITIVE

Defines whether column names should be used with the case in which they are given or as lower case when returning column values from a DML query. This is mostly relevant for PostgreSQL which requires false to work properly.

Key com.blazebit.persistence.returning_clause_case_sensitive

Type

boolean

Default

true

Applicable

Always

19.1.3. SIZE_TO_COUNT_TRANSFORMATION

Defines whether the SIZE to COUNT tranformation should be applied to queries or not. The transformation can be very beneficial especially for databases that can’t optimize subqueries properly within the context of a parent query. This property exists just so you can turn the transformation off if you encounter problems.

Key com.blazebit.persistence.size_to_count_transformation

Type

boolean

Default

true

Applicable

Always

19.1.4. IMPLICIT_GROUP_BY_FROM_SELECT

Defines whether non-aggregate expressions from the SELECT clause should be automatically added to the GROUP BY. Some databases require that all non-aggregate expressions must be included in the GROUP BY clause which is pretty annoying. This feature can make writing queries a lot easier since it will implicitly copy expressions over to the GROUP BY clause.

Key com.blazebit.persistence.implicit_group_by_from_select

Type

boolean

Default

true

Applicable

Always

19.1.5. IMPLICIT_GROUP_BY_FROM_HAVING

Defines whether non-aggregate expressions from the HAVING clause should be automatically added to the GROUP BY. Some databases require that all non-aggregate expressions must be included in the GROUP BY clause which is pretty annoying. This feature can make writing queries a lot easier since it will implicitly copy expressions over to the GROUP BY clause.

Key com.blazebit.persistence.implicit_group_by_from_having

Type

boolean

Default

true

Applicable

Always

19.1.6. IMPLICIT_GROUP_BY_FROM_ORDER_BY

Defines whether non-aggregate expressions from the ORDER BY clause should be automatically added to the GROUP BY. Some databases require that all non-aggregate expressions must be included in the GROUP BY clause which is pretty annoying. This feature can make writing queries a lot easier since it will implicitly copy expressions over to the GROUP BY clause.

Key com.blazebit.persistence.implicit_group_by_from_order_by

Type

boolean

Default

true

Applicable

Always

19.1.7. EXPRESSION_OPTIMIZATION

Defines whether expressions should be optimized.

Key com.blazebit.persistence.expression_optimization

Type

boolean

Default

true

Applicable

Configuration only

19.1.8. EXPRESSION_CACHE_CLASS

The full qualified expression cache implementation class name.

Key com.blazebit.persistence.expression.cache_class

Type

String

Default

com.blazebit.persistence.parser.expression.ConcurrentHashMapExpressionCache

Applicable

Configuration only

19.1.9. VALUES_CLAUSE_FILTER_NULLS

Defines whether tuples of a VALUES clause with all NULL values should be filtered out. The property can be changed for a criteria builder before using the VALUES clause.

Key com.blazebit.persistence.values.filter_nulls

Type

boolean

Default

true

Applicable

Always

19.1.10. PARAMETER_AS_LITERAL_RENDERING

Defines whether parameters should be rendered as literals when the type can not be inferred, or always as parameter. The property can be changed for a criteria builder before constructing a query.

Key com.blazebit.persistence.parameter_literal_rendering

Type

boolean

Default

true

Applicable

Always

19.1.11. OPTIMIZED_KEYSET_PREDICATE_RENDERING

Defines whether the keyset predicate should be rendered in an optimized form so that database optimizers are more likely to use indices. The property can be changed for a criteria builder before constructing a query.

Key com.blazebit.persistence.optimized_keyset_predicate_rendering

Type

boolean

Default

true

Applicable

Always

19.2. Jpql functions

Custom functions that can be invoked via the JPA 2.1 function syntax FUNCTION('function_name', args...) can be registered with registerFunction(JpqlFunctionGroup). A JpqlFunctionGroup represents a logical function that can contain multiple implementations for various dbms and can be defined as being an aggregate function.

These functions are registered as native persistence provider functions and can therefore also be used with plain JPA APIs or the native persistence provider APIs. For more information refer to the [JPQL functions] section.

19.3. Dbms dialects

Dbms dialect implementations provide SQL-level abstractions for a specific dbms. Blaze Persistence comes with support for the following dbms:

  • h2

  • mysql

  • postgresql

  • db2

  • oracle

  • microsoft

By registering a custom implementation for a specific dbms via registerDialect(String, DbmsDialect) the default implementation will be overridden. For more information refer to the [Customize DBMS dialect] section.

19.4. Entity manager factory integrators

A little integration layer to extract the dbms of an entity manager and register JpqlFunctionGroup instances with the entity manager. This is normally provided by an integration module for persistence providers.
